TIP147TTU
TIP147TTU
598-TIP147TTU
TO-220-3
TIP147TTU datasheet pdf and Transistors - Bipolar (BJT) - Single product details from ON Semiconductor stock available at HK JDW
In Stock : 5613
Share
Please send RFQ, we will respond immediately.
Product Details
Purchasing and Inquiry
Product Description:

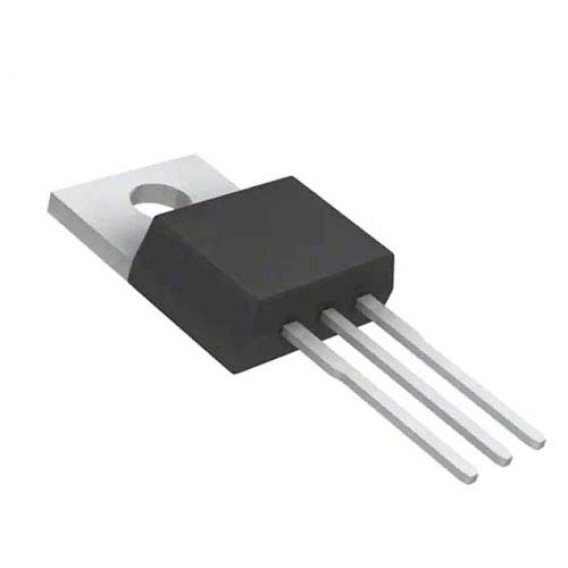

The TIP147TTU is a high-power PNP Darlington transistor designed to provide efficient and reliable switching and amplification capabilities in a wide range of electronic applications. This transistor is well-suited for applications requiring high current and voltage handling capabilities.
Features:
High Current and Voltage Handling: The TIP147TTU is capable of handling high currents and voltages, making it suitable for power switching and amplification tasks.
Darlington Configuration: The Darlington configuration of the transistor allows for a high current gain, enabling it to effectively control larger currents with a smaller base current.
Low Saturation Voltage: The transistor exhibits low saturation voltage, which minimizes power loss and heat generation during operation.
TO-220 Package: The TO-220 package design provides effective heat dissipation and ease of mounting to heat sinks, ensuring reliable and stable operation.
Built-in Free-Wheeling Diode: The TIP147TTU includes an integrated free-wheeling diode, which offers protection against voltage spikes in inductive loads.
Applications:
The TIP147TTU transistor finds applications in various electronic systems, including:
Power Supplies: It's commonly used in power supply circuits for voltage regulation and power switching.
Motor Control: The TIP147TTU is employed in motor control circuits to regulate and switch high currents in electric motors.
Audio Amplifiers: It's used in audio amplifier circuits to amplify audio signals with higher currents.
Switching Circuits: The transistor is utilized in switching applications, such as relay and solenoid control.
Voltage Regulation: It's used in voltage regulator circuits to control and stabilize voltage levels in different parts of electronic systems.
LED Drivers: The TIP147TTU can be used to drive high-power LEDs in lighting applications.
In summary, the TIP147TTU is a high-power PNP Darlington transistor that offers excellent current and voltage handling capabilities. Whether you're working on power supplies, motor control, audio amplifiers, or switching circuits, this transistor provides efficient switching and amplification performance, contributing to the overall functionality and reliability of your electronic designs.
