10M02SCM153C8G

Product Description: 10M02SCM153C8G

The 10M02SCM153C8G is a member of the Intel® Cyclone® 10 family of FPGA (Field-Programmable Gate Array) devices. It is designed to provide a cost-effective and low-power solution for various digital design applications that require programmable logic with moderate logic capacity.

Description:

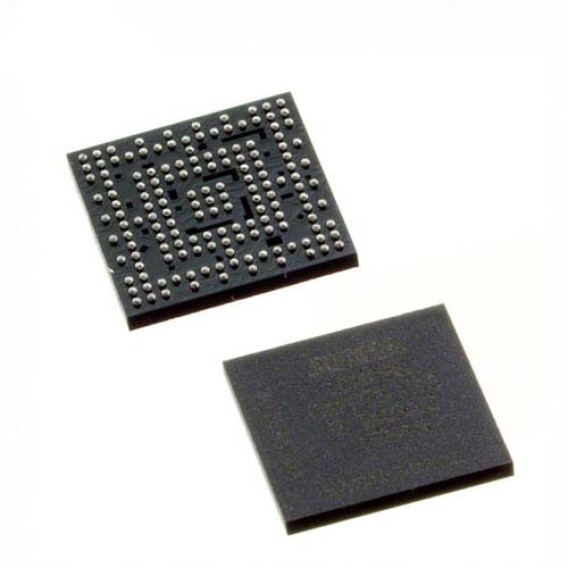

The 10M02SCM153C8G is an FPGA device offered in a compact 153-pin FCGA (Fine-Pitch Ceramic Grid Array) package, providing a suitable footprint for space-constrained designs. It features a moderate number of logic elements and I/O pins, making it suitable for medium-scale digital circuits.

Features:

Programmable Logic: The 10M02SCM153C8G FPGA allows users to program the device to implement various digital functions according to their specific application requirements.

Low Power Consumption: The device is designed for low-power operation, making it suitable for battery-operated or power-sensitive applications.

Non-Volatile Configuration: Once programmed, the FPGA retains its configuration even when power is removed, enabling standalone operation without the need for external configuration memory.

In-System Programming (ISP): The FPGA supports in-system programming, allowing users to reconfigure the device without removing it from the target system.

Embedded Memory: The 10M02SCM153C8G contains embedded memory blocks that can be used for data storage and fast access, reducing the need for external memory devices.

Dedicated Hardware Multipliers: The FPGA offers dedicated hardware multipliers, enabling efficient implementation of multiply-accumulate (MAC) operations commonly used in digital signal processing applications.

Clock Management: The device includes built-in PLLs (Phase-Locked Loops) for clock management, allowing users to generate and manage multiple clock signals within the FPGA.

Applications:

The 10M02SCM153C8G FPGA is well-suited for various digital design applications that require programmable logic and moderate logic capacity. Some typical applications include:

Digital Signal Processing: The FPGA can be used to implement digital signal processing algorithms, such as filtering, image processing, and audio/video processing.

Communications: It is suitable for communication applications, including Ethernet interfacing, protocol conversion, and data packet processing.

Industrial Control: The FPGA can be employed in industrial control systems for tasks such as motor control, sensor interfacing, and automation.

Test and Measurement: The device can be utilized in test and measurement equipment to implement signal generation, data acquisition, and real-time data processing.

Embedded Systems: The 10M02SCM153C8G can be integrated into embedded systems to provide custom logic functions and control capabilities.

Internet of Things (IoT): It is applicable to IoT devices that require programmable logic for sensor interfacing, data processing, and communication.

In summary, the 10M02SCM153C8G is a cost-effective FPGA offering moderate logic capacity, low power consumption, and non-volatile configuration. Its versatility makes it suitable for various digital design applications, including digital signal processing, communications, industrial control, test and measurement, embedded systems, and IoT devices.
