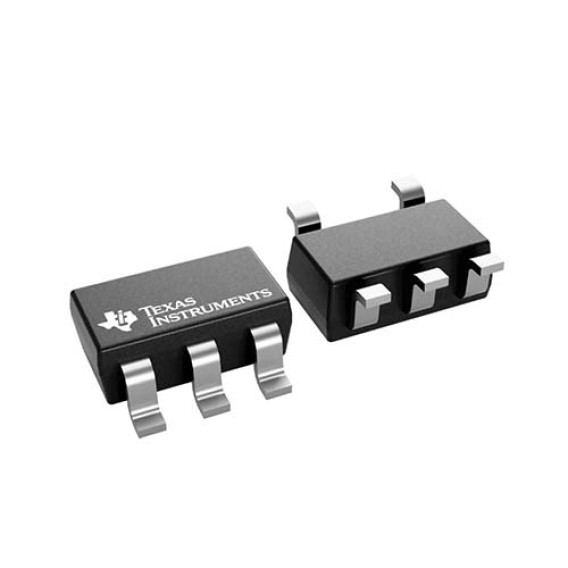

TPS54302DDCR
TPS54302DDCR
815-TPS54302DDCR
SOT-23-6 Thin, TSOT-23-6
6 Terminals 4.5V 6-Pin TPS54302 DC DC Voltage Regulator SWITCHING REGULATOR 1 Outputs 400kHz Tape & Reel (TR) 3A SOT-23-6 Thin, TSOT-23-6
Unit Price: $3.1562
Ext Price: $3.1562
In Stock : 850
Share
Qty
Unit Price
Ext Price
-
10
$2.98
$29.78
-
100
$2.81
$280.90
-
500
$2.65
$1,325.00
-
1000
$2.50
$2,500.00
Not the price you want? Send RFQ Now and we'll contact you ASAP.
Product Details
Purchasing and Inquiry
Description
The TPS54302DDCR is a 3-A synchronous buck converter with a 4.5-V to 28-V input voltage range. To keep the component count down, the device has two integrated switching FETs, internal loop correction, and a 5-ms internal soft start.
The TPS54302DDCR device delivers great power density while maintaining a small footprint on the PCB by integrating the MOSFETs and using the SOT-23 packaging.
The advanced Eco-mode implementation improves light load efficiency while lowering power consumption.
The frequency spread spectrum operation has been implemented in the TPS54302DDCR device to reduce EMI.
The converter is protected in an overload condition by a cycle-by-cycle current limit in both high-side MOSFETs, which is supplemented by a low-side MOSFET freewheeling current limit that prevents current runaway. If the overcurrent condition has been present for longer than the current time, the hiccup mode protection is activated.
Features
? Advanced Eco-mode? pulse skip
? Peak current-mode control
? Internal loop compensation
? Overcurrent protection for both MOSFETs with hiccup mode protection
? Overvoltage protection
? Thermal shutdown
? SOT-23 (6) package
? 4.5-V to 28-V wide input voltage range
? Integrated 85-mΩ and 40-mΩ MOSFETs for 3-A, continuous output current
? Low 2-μA shutdown, 45-μA quiescent current
? Internal 5-ms soft start
? Fixed 400-kHz switching frequency
? Frequency spread spectrum to reduce EMI
Applications
? Consumer application
– Audio
– STB, DTV
– Printer
? 12-V, 24-V distributed power-bus supply
? Industry application
– White goods
