Home Home Integrated Circuits (ICs) DC DC Voltage Regulators ST1S14PHR
ST1S14PHR
  • ST1S14PHR
Free Sample More

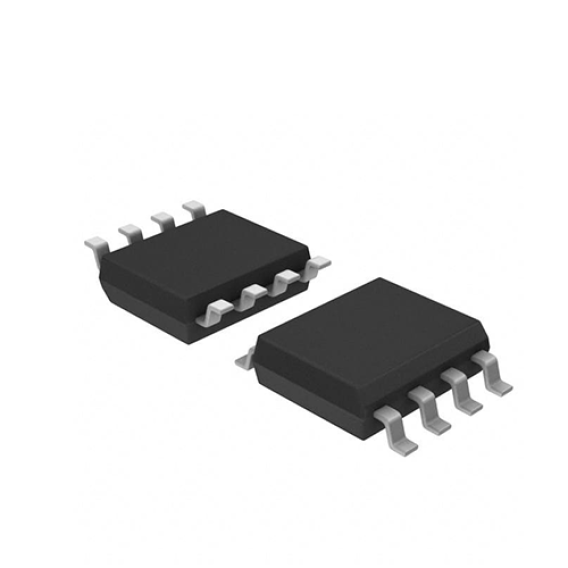

ST1S14PHR

advertisement

Manufacturer No:

ST1S14PHR

Manufacturer:

STMicroelectronics

HK JDW NO:

FEILIDI-ST1S14PHR

Package:

8-SOIC (0.154, 3.90mm Width) Exposed Pad

Datasheet:

ST1S14PHR

Description:

8 Terminals 5.5V 8-Pin ST1S14 DC DC Voltage Regulator SWITCHING REGULATOR 1 Outputs 850kHz Tape & Reel (TR) 8-SOIC (0.154, 3.90mm Width) Exposed Pad

Quantity:

Add to RFQ list

In Stock : 1999

Share

Please send RFQ, we will respond immediately.

* Contact Name

* Business Email

* Company Name

* Country

* Quantity

Product Details

Purchasing and Inquiry

ST1S14PHR Description


Depending on the application, the ST1S14PHR is a step-down monolithic power switching regulator capable of delivering up to 3 A DC current to the load.



ST1S14PHR Features


  • 3 A DC output current

  • Operating input voltage from 5.5 V to 48 V

  • 850 kHz internally fixed switching frequency

  • Internal soft-start

  • Power good open collector output

  • Current mode architecture

  • Embedded compensation network

  • Zero loads current operation

  • Internal current limiting

  • Inhibit for zero current consumption

  • 2 mA maximum quiescent current over the temperature range

  • 250 mΩ typ. RDS(on)

  • Thermal shutdown



ST1S14PHR Applications


  • Factory automation

  • Printers

  • DC-DC modules

  • High current LED drivers
