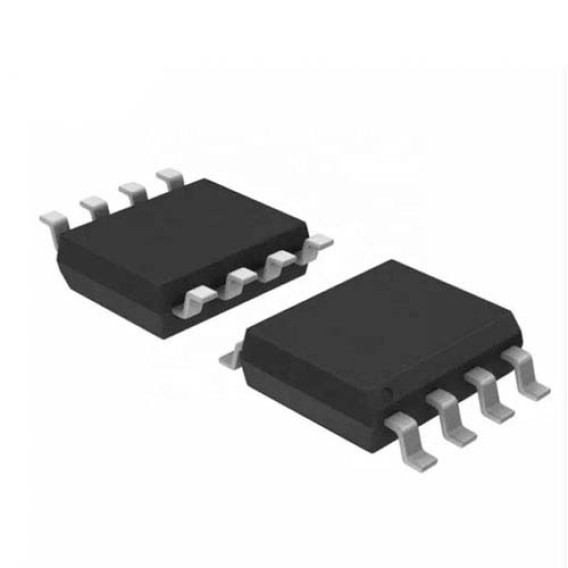

LM358DR2G
LM358DR2G
598-LM358DR2G
8-SOIC (0.154, 3.90mm Width)
2 Channels 40mA per Channel 45nA 65 dB Instrumentational OP Amps 0.5μA 16V 3V~32V ±1.5V~16V LM358 8 Pins 8-SOIC (0.154, 3.90mm Width)
In Stock : 2463
Share
Please send RFQ, we will respond immediately.
Product Details
Purchasing and Inquiry
Product Description:
The LM358DR2G is a dual operational amplifier that offers precision signal amplification and processing capabilities. With its versatile design and reliable performance, this device is widely used in various electronic applications to amplify, filter, and process analog signals.
Features:
Dual Op-Amp: The LM358DR2G contains two separate operational amplifiers in a single package, allowing for the amplification and processing of two independent signals.
Low Offset Voltage: This operational amplifier exhibits low offset voltage, which minimizes the difference between the input and output voltage when the input is zero, enhancing accuracy in signal processing.
Low Input Bias Current: The device features low input bias current, reducing the impact of the amplifier on the input signal.
Wide Input Voltage Range: The LM358DR2G can accept a wide range of input voltages, making it suitable for amplifying signals with varying amplitudes.
Single or Dual Supply Operation: The operational amplifier can operate with a single positive supply or dual positive and negative supplies, providing flexibility in power supply configurations.
High Open-Loop Gain: The device offers high open-loop gain, facilitating accurate amplification of small input signals.
Low Quiescent Current: The low quiescent current minimizes power consumption when the amplifier is idle.
SOT-23 Package: The device is available in a compact SOT-23 package, which is suitable for space-constrained applications and surface-mount soldering.
RoHS Compliant: The LM358DR2G is compliant with the Restriction of Hazardous Substances (RoHS) directive, meeting environmental regulations.
Applications:
Signal Conditioning: The LM358DR2G is commonly used to condition and amplify analog signals in various applications, including sensor interfaces and measurement circuits.
Active Filters: It can be used to design active filter circuits for shaping and processing signals in audio and communication systems.
Comparator Circuits: The device can be configured as a comparator to compare two input signals and provide a digital output based on the comparison.
Voltage Followers: The operational amplifier can be used as a voltage follower to provide isolation between input and output and maintain the same voltage level.
Oscillators: It can be employed in oscillator circuits to generate waveform signals for various purposes.
Voltage and Current Amplification: The LM358DR2G can amplify both voltage and current signals in various electronic systems.
Audio Amplification: The operational amplifier is used in audio circuits for amplifying and processing audio signals.
Signal Offset Correction: It can be used to correct DC offsets in sensor or signal processing circuits.
Feedback Loops: The device is used in feedback loops to control and stabilize system parameters.
Test and Measurement: The LM358DR2G is suitable for building amplifiers and filters in test and measurement equipment.
In summary, the LM358DR2G dual operational amplifier is a versatile component that excels in signal amplification and processing. Its low offset voltage, wide input voltage range, and compatibility with single or dual supplies make it suitable for a wide range of applications. Whether you're working on signal conditioning, active filters, comparators, or audio amplification, this operational amplifier provides reliable performance and enhances the accuracy and performance of your electronic circuits.
