UT3401G-AE3-R

Features

Channel type: P-Channel, suitable for circuit designs that require P-type transmission conductors.

Rated voltage: The rated voltage may vary slightly depending on different data, but the generally mentioned value is 30V, which is suitable for circuit designs of various power supplies and electronic devices.

Rated current:

Some data indicate that its maximum drain current (Id) is 4.2A (at 25°C), which is suitable for scenarios that handle medium currents.

Other data mentions that its rated current is -5.6A, which indicates that it has a high current carrying capacity and is suitable for scenarios that need to handle large currents.

On-resistance: Low on-resistance helps reduce power loss and improve efficiency. The specific values may vary depending on the test conditions, such as 50mΩ @ 4.2A, 10V or 47mΩ @ VGS=10V, VGS=20V.

Threshold voltage: Low voltage threshold (such as Vth=-1V or 1.3V @ 250uA) makes it perform well in low-voltage environments and easy to drive.

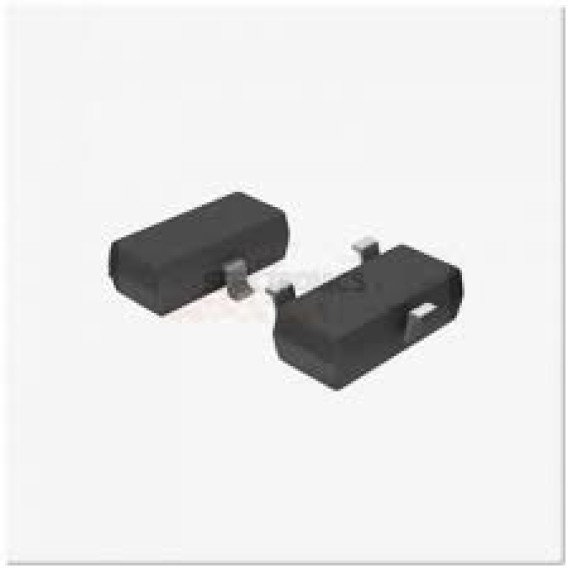

Package: SOT-23 package, which is a compact package suitable for applications with limited space.

Other features: It has fast switching speed, low on-resistance, excellent thermal and electrical performance, and can operate at low gate voltage.

Applications

UT3401G-AE3-R is suitable for a variety of fields and circuit designs due to its excellent performance parameters and compact package, including but not limited to:

Power management module: It can be used for power switching, voltage regulation and regulation circuits to build efficient and compact power systems.

Power tools: It meets the needs of power tools for high current and voltage resistance as a driver or switch component.

Automotive electronics: It is suitable for power switching and current control in automotive electronic systems to ensure the stable operation of automotive electronic equipment.

LED lighting: It is used in LED drive circuits to provide stable current control to ensure stable brightness and efficiency of LED lights.

Other applications: It can also be used in motor control and drive modules, battery management circuits, etc. to achieve precise circuit control and protection functions.
