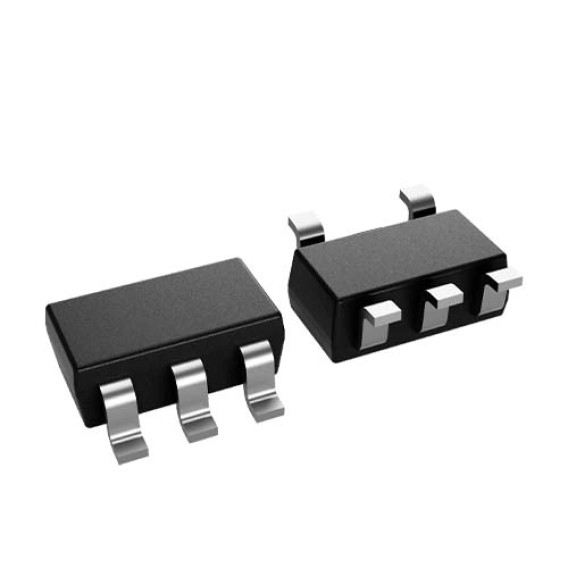

UCC27517DBVR
UCC27517DBVR
feilidi-UCC27517DBVR
SC-74A, SOT-753
Surface Mount Tape & Reel (TR) Active EAR99 Gate Drivers ICs Inverting, Non-Inverting SC-74A, SOT-753 UCC27517 Low-Side
Unit Price: $2.4240
Ext Price: $2.4240
In Stock : 1000
Share
Qty
Unit Price
Ext Price
-
10
$2.29
$22.87
-
100
$2.16
$215.73
-
500
$2.04
$1,017.60
-
1000
$1.92
$1,920.00
Not the price you want? Send RFQ Now and we'll contact you ASAP.
Product Details
Purchasing and Inquiry
UCC27517 Single Channel Gate Driver Description
The UCC27517 single-channel, high-speed, low-side gate driver device can drive MOSFET and IGBT power switches effectively. UCC27517 can source and sink high peak-current pulses into capacitive loads with rail-to-rail drive capability and extremely short propagation delay, typically 13 ns, thanks to an inherently low shoot-through current design.
At VDD = 12 V, the UCC27517 has a peak-drive current capability of a 4-A source, and a 4-A sink (symmetrical drive). The UCC27517 is intended to operate over a broad VDD range of 4.5 to 18 V and a temperature range of –40°C to 140°C. Outside of the VDD operating range, internal under-voltage lockout (UVLO) circuitry on the VDD pin keeps the output low. The ability to operate at low voltage levels, such as less than 5 V, combined with best-in-class switching characteristics, makes it ideal for driving emerging wide band-gap power-switching devices such as GaN power semiconductor devices.
UCC27517 Single Channel Gate Driver Features
Dual Input Design (Choice of an Inverting (IN– pin) or Noninverting (IN+ Pin) Driver Configuration)
4-A Peak-Source and 4-A Peak-Sink Symmetrical Drive
by VDD Pin Bias Supply Voltage
5-Pin DBV (SOT-23) and 6-Pin DRS (3-mm × 3-mm WSON With Exposed Thermal Pad) Package Options
Fast Rise and Fall Times (9-ns and 7-ns Typical)
Unused Input Pin Can Be Used for Enable or Disable Function
Fast Propagation Delays (13-ns Typical)
Input Pin Absolute Maximum Voltage Levels Not Restricted
Output Held Low When Input Pins Are Floating
Operating Temperature Range of –40°C ~ 140°C
Low-Cost Gate-Driver Device Offering Superior Replacement of NPN and PNP Discrete Solutions
4.5 to 18-V Single-Supply Range
Outputs Held Low During VDD UVLO (Ensures Glitch-Free Operation at Power Up and Power Down)
Hysteretic-Logic Thresholds for High-Noise Immunity
TTL and CMOS Compatible Input-Logic Threshold (Independent of Supply Voltage)
UCC27517 Single Channel Gate Driver Applications
Switched-Mode Power Supplies
DC-DC Converters
Devices (such as GaN)
Companion Gate-Driver Devices for Digital-Power
Gate Driver for Emerging Wide Band-Gap Power
Controllers
Solar Power, Motor Control, UPS
