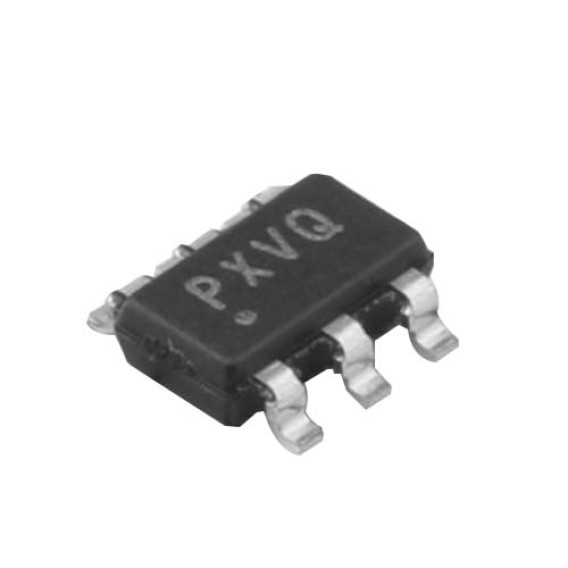

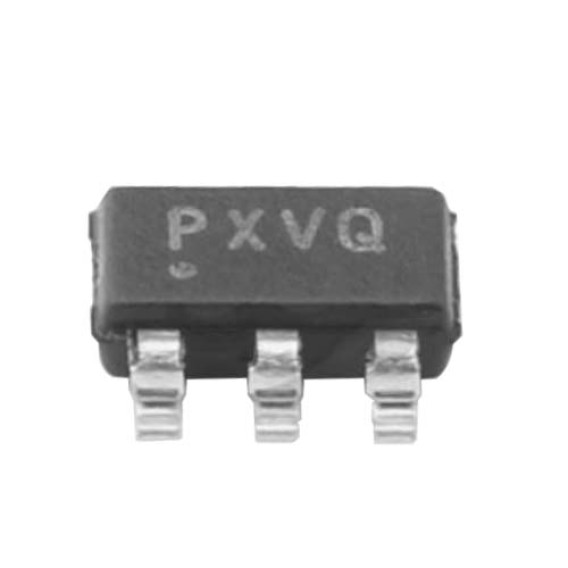

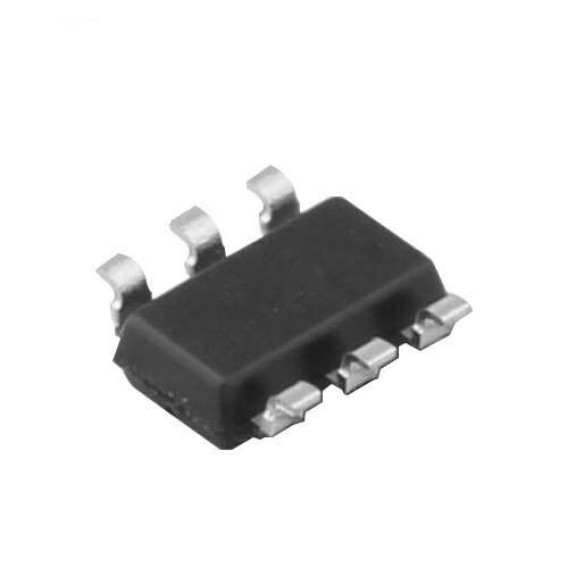

TPS3700DDCR
TPS3700DDCR
Texas Instruments-TPS3700DDCR
SOT-23-6 Thin, TSOT-23-6
Surface Mount Tape & Reel (TR) Linear Comparators 7μA μA Surface Mount
Unit Price: $3.1500
Ext Price: $3.1500
In Stock : 10000
Share
Qty
Unit Price
Ext Price
Not the price you want? Send RFQ Now and we'll contact you ASAP.
Product Details
Purchasing and Inquiry
The TPS3700DDCR is a high-voltage Window Comparator with a 1.8 to 18V operating range. For over and under-voltage detection, the device comprises two high-accuracy comparators with an internal 400mV reference and two open-drain outputs rated at 18V. The TPS3700 can be used as a window comparator or as two independent voltage monitors using external resistors to set the monitored voltage. When the voltage at INA+ falls below the corresponding threshold, OUTA is driven low, and when the voltage rises beyond it, it is driven high. When the voltage at INB- climbs over VITP, OUTB is driven low, and when the voltage drops below the appropriate threshold, it is driven high. The TPS3700's comparator has built-in hysteresis for filtering out short glitches, ensuring reliable output operation without false triggering.
TPS3700DDCR Features
400mV Adjustable threshold
5.5μA Low quiescent current
Green product and no Sb/Br
1% Over-temperature and 0.25% typical high threshold accuracy
Open-drain outputs for over-voltage and under-voltage detection
TPS3700DDCR Applications
Military
Medical
Defense
Industrial
Aerospace
