TPD6F002DSVR
TPD6F002DSVR
815-TPD6F002DSVR
12-WFDFN Exposed Pad

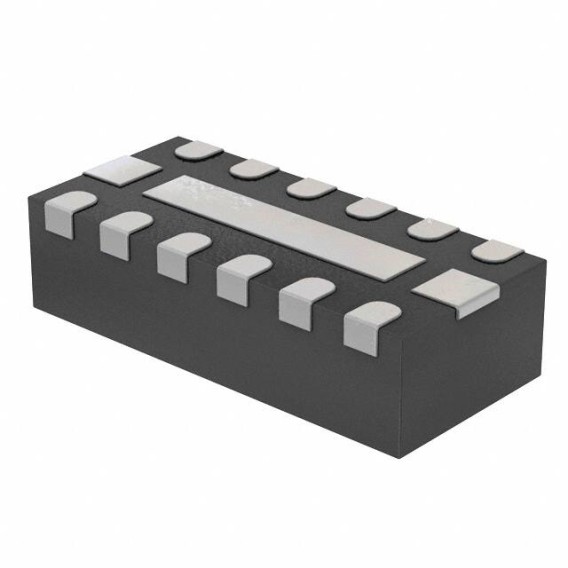

FILTER RC(PI) 100 OHM/17PF SMD
In Stock : 999
Share
Please send RFQ, we will respond immediately.
Product Details
Purchasing and Inquiry
Features
Six-Channel EMI Filtering for Data Ports – –57-dB Crosstalk Attenuation at 100 MHz – –35-dB Insertion Loss at 800 MHz – –3-dB Bandwidth at 100 MHz
Robust ESD Protection Exceeds IEC 61000-4-2 (Level 4) – ±20-kV IEC 61000-4-2 Contact Discharge – ±30-kV IEC 61000-4-2 Air-Gap Discharge
Pi-Style (C-R-C) Filter Configuration (R = 100 Ω, CTOTAL = 34 pF)
Low Leakage Current: 20 nA (Maximum)
Space-Saving WSON Package (3 mm × 1.35 mm)
Applications
LCD Display Interface
GPIO
Memory Interface
Data Lines at Flex Cables
FPD-Link
Description
The TPD6F002 device is a highly-integrated device that provides a six-channel Electromagnetic Interference (EMI) filter and a TVS based ESD protection diode array. The low-pass filter array suppresses EMI/RFI emissions for data ports subject to electromagnetic interference. The TVS diode array is rated to dissipate ESD strikes above the maximum level specified in the IEC 61000-4-2 international standard.
The high level of integration, combined with its small easy-to-route DSV package, allows this device to provide great circuit protection for LCD displays, memory interfaces, GPIO lines, and FPDLink.
