PIC16F1503-I/SL
PIC16F1503-I/SL
536-PIC16F1503-I/SL
14-SOIC (0.154, 3.90mm Width)
3.5KB 2K x 14 FLASH PIC 8-Bit Microcontroller PIC® 16F Series PIC16F1503 14 Pin 20MHz 2.5V 14-SOIC (0.154, 3.90mm Width)
In Stock : 7186
Share
Please send RFQ, we will respond immediately.
Product Details
Purchasing and Inquiry

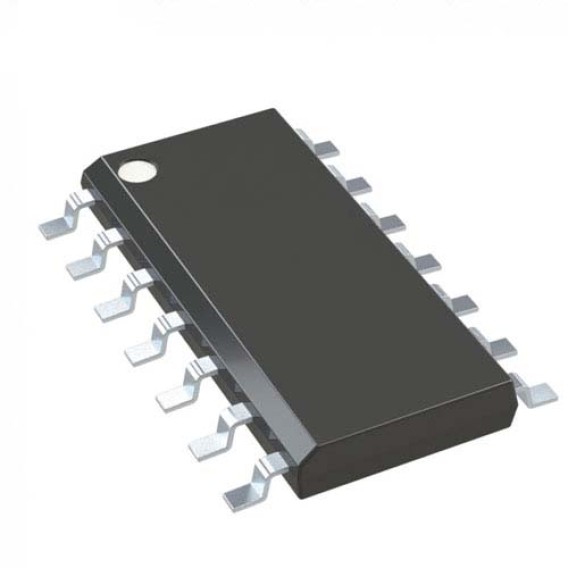

Product Description: PIC16F1503-I/SL
The PIC16F1503-I/SL is a versatile 8-bit microcontroller manufactured by Microchip Technology. It belongs to the PIC16 family and is designed to provide an efficient and cost-effective solution for a wide range of embedded control applications. The microcontroller comes in a small-sized 14-pin SOIC package (SL), making it suitable for space-constrained designs.
Description:
The PIC16F1503-I/SL features a powerful 8-bit RISC CPU core, capable of executing instructions quickly and efficiently. It is equipped with flash memory for program storage, RAM for data storage, and EEPROM for non-volatile data storage, providing flexibility and reliability in data handling.
Features:
High-Performance RISC CPU: The PIC16F1503-I/SL is built around an 8-bit RISC CPU core, capable of executing instructions in a single cycle, ensuring fast and efficient operation.
Flash Memory: It comes with 3.5KB of flash memory, enabling easy and flexible reprogramming of the microcontroller.
RAM and EEPROM: The microcontroller features 256 bytes of RAM for data storage and 256 bytes of EEPROM for non-volatile data storage, offering versatility in data handling.
I/O Ports: It includes a variety of I/O pins, allowing seamless interfacing with external devices and peripherals.
Analog-to-Digital Converter (ADC): The integrated ADC module makes it suitable for applications requiring analog data acquisition.
Timers and Counters: The PIC16F1503-I/SL is equipped with timers and counters, providing options for various timing and counting operations.
Serial Communication: It supports various serial communication protocols, such as UART, SPI, and I2C, facilitating easy interfacing with other devices.
PWM (Pulse Width Modulation): Built-in PWM modules enable precise control of analog signals, making it ideal for motor control and other applications.
Low-Power Operation: The microcontroller is designed for low-power operation, making it suitable for battery-powered applications.
Applications:
The PIC16F1503-I/SL microcontroller finds applications in a wide range of embedded control projects. Some typical applications include:
Home Automation: It can be used in home automation systems to control lighting, heating, and other household appliances.
Industrial Control: The microcontroller is employed in industrial control systems for process monitoring, data logging, and control.
Consumer Electronics: It finds applications in various consumer electronic devices, such as remote controls and smart gadgets.
Sensor Interfaces: It is utilized in sensor interfacing applications for data processing and communication.
Automotive Electronics: The microcontroller is used in automotive applications, including dashboard control, engine management, and lighting control.
IoT Devices: It is suitable for Internet of Things (IoT) devices that require embedded control and connectivity.
Battery-Powered Devices: The low-power operation makes it a good choice for battery-powered devices like wireless sensors and remote controllers.
Educational Projects: It is widely used in educational projects and hobbyist applications due to its ease of use and versatility.
In summary, the PIC16F1503-I/SL is a versatile 8-bit microcontroller designed to offer an efficient and cost-effective solution for a wide range of embedded control applications. Its high-performance RISC CPU, ample flash memory, RAM, EEPROM, I/O ports, integrated peripherals, and low-power operation make it suitable for diverse applications in home automation, industrial control, consumer electronics, sensor interfaces, automotive electronics, IoT devices, battery-powered devices, educational projects, and hobbyist applications. Its small-sized SOIC package ensures ease of integration in space-constrained designs, making it a reliable choice for numerous embedded control projects.
