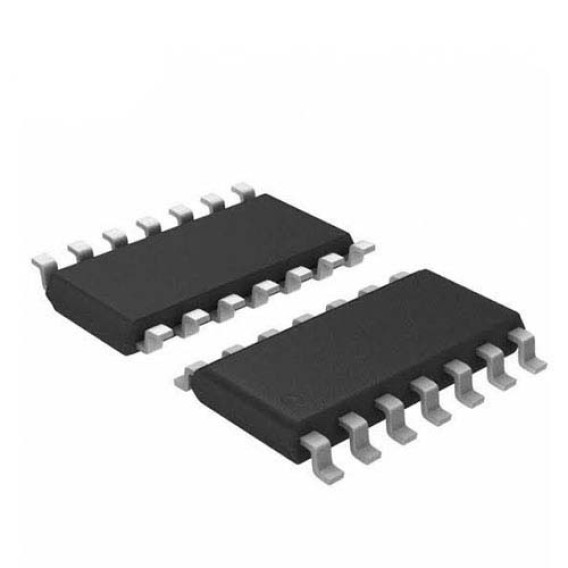

MC14584BDR2G
MC14584BDR2G
598-MC14584BDR2G
14-SOIC (0.154, 3.90mm Width)
5/15V V 80 ns ns 80 ns ns 8.75mm mm Gates & Inverters 8.8mA mA 1.5mm mm Surface Mount Surface Mount 3V~18V V 1μA μA
In Stock : 5753
Share
Please send RFQ, we will respond immediately.
Product Details
Purchasing and Inquiry
Product Description:
The MC14584BDR2G is a CMOS hex Schmitt trigger, a versatile integrated circuit designed to process digital signals with improved noise immunity and hysteresis. With its reliable performance and compact design, this IC is widely used in various applications where signal conditioning, noise rejection, and signal level stabilization are essential.
Features:
Hex Schmitt Trigger: The MC14584BDR2G features six Schmitt trigger circuits in a single package, each capable of processing digital signals.
Hysteresis: Schmitt trigger circuits offer hysteresis, which means they have two distinct voltage thresholds for signal transition (rising and falling edges). This feature helps to improve noise immunity and prevent signal instability caused by small voltage fluctuations.
Wide Voltage Range: The IC operates within a wide supply voltage range, making it suitable for various voltage levels in different electronic systems.
Low Power Consumption: The CMOS technology used in this IC ensures low power consumption, making it energy-efficient for battery-powered applications.
Fast Signal Processing: The MC14584BDR2G offers fast signal processing capabilities, making it suitable for applications that require quick response times.
Compact SOIC Package: The IC is housed in a compact SOIC (Small Outline Integrated Circuit) package, allowing for easy integration into circuit designs.
Applications:
Signal Conditioning: The Schmitt trigger functionality of the MC14584BDR2G makes it useful for conditioning digital signals by providing noise immunity and stable signal levels.
Waveform Shaping: It is used for shaping square wave signals, producing clean and well-defined digital output signals from noisy or distorted inputs.
Noise Rejection: The hysteresis feature helps reject noise in input signals, making the IC suitable for applications in noisy environments.
Oscillators: The Schmitt trigger can be employed in oscillator circuits to generate square wave or pulse wave signals.
Digital Logic Level Conversion: It can convert digital signal levels between different voltage domains.
Signal Detection and Threshold Detection: The IC is used to detect signal transitions and set specific voltage thresholds for triggering actions.
Sensor Interface: It is utilized in sensor interface circuits where reliable signal processing and noise rejection are required.
Timing Circuits: The IC is suitable for generating timing signals in various applications.
In summary, the MC14584BDR2G CMOS hex Schmitt trigger offers features like hysteresis, noise immunity, and low power consumption. It finds applications in signal conditioning, waveform shaping, noise rejection, oscillators, digital logic level conversion, sensor interfaces, and timing circuits. Its compact size and reliable performance make it a valuable component in electronic systems that require precise signal processing and noise rejection capabilities.
