  • MAX38643AENT+T

MAX38643AENT+T

advertisement

Manufacturer No:

MAX38643AENT+T

Manufacturer:

Maxim Integrated

HK JDW NO:

503-MAX38643AENT+T

Package:

-

Datasheet:

-

Description:

DC DC Voltage Regulator

Quantity:

In Stock : 5739

Share

Please send RFQ, we will respond immediately.

* Contact Name

* Business Email

* Company Name

* Country

* Quantity

Product Details

Purchasing and Inquiry

General Description

The MAX38640–MAX38643 are a nanoPower family of

ultra-low 330nA quiescent current buck (step-down) DCDC converters that operate from 1.8V to 5.5V input voltage and support load currents of up to 175mA, 350mA,

700mA with peak efficiencies of 96%. While in shutdown,

there is only 5nA of shutdown current. The devices offer

ultra-low quiescent current, small total solution size, and

high efficiency throughout the load range. The

MAX38640–MAX38643 are ideal for battery applications

where long battery life is a must.

The MAX38640–MAX38643 family utilizes a unique control scheme that allows ultra-low quiescent current and

high efficiency over a wide output current range. The

MAX38642 excludes active discharge resistor in shutdown, which allows the output to be regulated or held high

by another source or by the charged output capacitor.

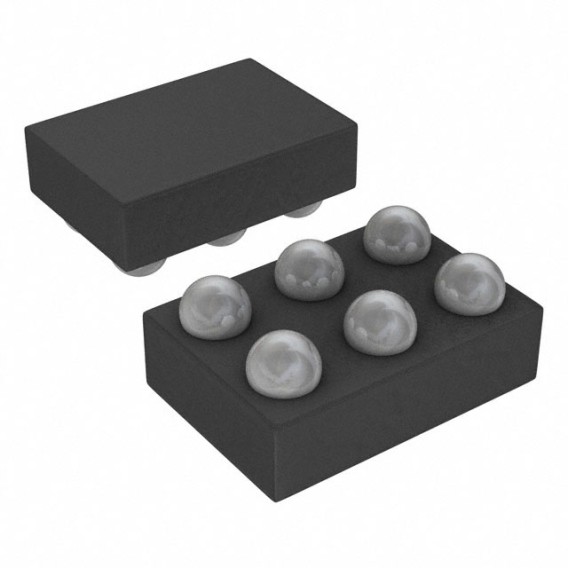

The MAX38640–MAX38643 devices are offered in a

space-saving 1.42mm x 0.89mm, 6-pin WLP (2x3 bump,

0.4mm pitch), as well as a 2mm x 2mm, 6-pin µDFN package. All parts are specified over the -40°C to +85°C extended temperature range.

Benefits and Features

Extends Battery Life

• 330nA Ultra-Low Quiescent Supply Current

• 5nA Shutdown Current

• 96% Peak Efficiency and over 88% at 10µA

Easy to Use – Addresses Popular Operation

• 1.8V to 5.5V Input Range

• Single Resistor-Adjustable VOUT from 0.7V to 3.3V (A-Option)

• Preprogrammed VOUT from 0.5V to 5.0V (B-Option)

• ±1.75% Output Voltage Accuracy

• Up to 175mA/350mA/700mA Load Current

 Protects System in Multiple Use Cases

• Reverse-Current Blocking in Shutdown

• Optional Active Discharge Feature

Reduces Size and Increases Reliability

• -40°C to +85°C Temperature Range

• 2mm x 2mm, 6-pin µDFN Package

• 1.42mm x 0.89mm, 0.4mm Pitch 6-pin (2 x 3) WLP

Applications

Portable, Space-Constrained Consumer Products

Wearable Devices, Ultra-Low-Power IoT, NB IoT, and Bluetooth® LE

Single Li-ion (Li+) and Coin Cell Battery Products

Wired or Wireless Industrial Products
