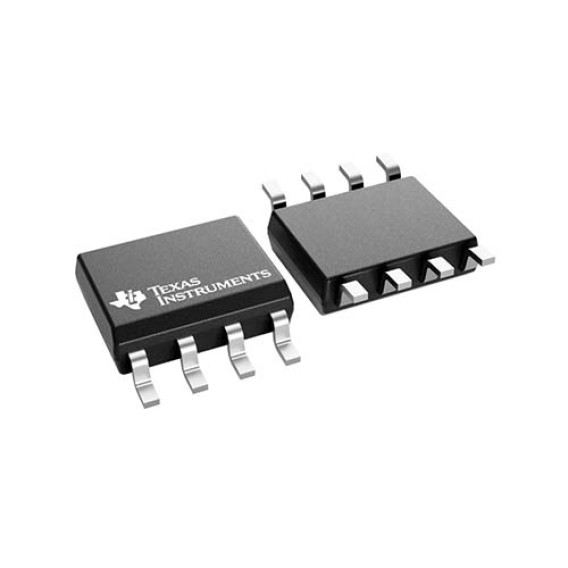

LM5101BMA/NOPB
LM5101BMA/NOPB
815-LM5101BMA/NOPB
8-SOIC (0.154, 3.90mm Width)
Surface Mount Tube Active EAR99 Gate Drivers ICs Non-Inverting 118V V 8-SOIC (0.154, 3.90mm Width) LM5101 Half-Bridge
Unit Price: $82.0610
Ext Price: $82.0610
In Stock : 1920
Share
Qty
Unit Price
Ext Price
-
10
$77.42
$774.16
-
100
$73.03
$7,303.40
-
500
$68.90
$34,450.00
-
1000
$65.00
$65,000.00
Not the price you want? Send RFQ Now and we'll contact you ASAP.
Product Details
Purchasing and Inquiry
LM5101BMA/NOPB Overview
A higher degree of flexibility is achieved by adopting its 8-SOIC (0.154, 3.90mm Width) package.Tube represents the packaging method.The device is mounted in the direction of Surface Mount.By using 9V~14V supply voltage, it is able to demonstrate its superiority.The gate type on this device is N-Channel MOSFET.There is a temperature range for this device of -40°C~125°C TJ.The input type for this program is Non-Inverting.Initially, the configuration is composed of 8 terminations.Mosfet driver contains a variety of related parts under Mosfet drivers base part number LM5101.The device is mounted using Surface Mount.When the device is designed, it has 8 pins.Specification is for 12V supply voltage operation.2A is the maximum output current.There are several useful electronic components within its subcategory MOSFET Drivers.High-side voltage - Max (Bootstrap) can be as low as 118V.For its basis, there are 2 outputs integrated.The output current supported by the device is 2A.The supply voltage is 2mA.Its quiescent current at 200μA describes its current consumption when not influenced by external factors.During operation, the supply current may not exceed 3mA.
LM5101BMA/NOPB Features
Embedded in the Tube package
Employing a gate type of N-Channel MOSFET
8 pins
High-side voltage - Max (Bootstrap) of 118V
Quiescent current of 200μA
LM5101BMA/NOPB Applications
There are a lot of Texas Instruments LM5101BMA/NOPB gate drivers applications.
- LCD/LCoS/DLP portable and embedded pico projectors
- 3-Phase Motor Inverter Driver
- Power factor correction (PFC) circuits
- A/D drivers
- Head-up and Head mounted displays
- Uninterruptible Power Supplies (UPS)
- Isolated Gate Driver Supplies
- Isolated Supplies for controller area network (CAN),
- Industrial motor drives - compact, standard, premium, servo drives
- Multicolor LED/laser displays
