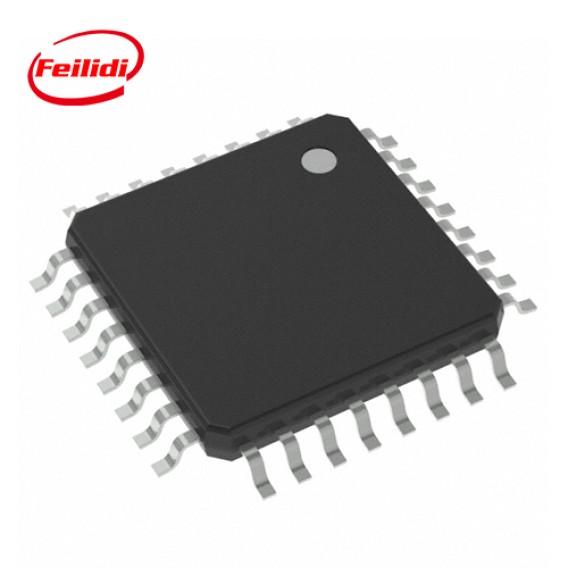

ATMEGA8A-AU

The high-performance, low-power Microchip 8-bit AVR RISC-based microcontroller combines 8KB ISP flash memory with read-while-write capabilities, 512B EEPROM, 1KB SRAM, 23 general purpose I/O lines, 32 general purpose working registers, three flexible timer/counters with compare modes, internal and external interrupts,serial programmable USART, a byte oriented two-wire serial interface, 6-channel 10-bit A/D converter (8-channel in TQFP and QFN/MLF packages), programmable watchdog timer with internal oscillator, SPI serial port, and five software selectable power saving modes. The device operates between 2.7-5.5 volts. By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, balancing power consumption and processing speed.

Features

• High-performance, Low-power Microchip AVR® 8-bit Microcontroller

• Advanced RISC Architecture

- 130 Powerful Instructions – Most Single-clock Cycle Execution

- 32 x 8 General Purpose Working Registers

- Fully Static Operation

- Up to 16MIPS Throughput at 16MHz

- On-chip 2-cycle Multiplier

• High Endurance Non-volatile Memory segments

- 8KBytes of In-System Self-programmable Flash program memory

- 512Bytes EEPROM

- 1KByte Internal SRAM

- Write/Erase Cycles: 10,000 Flash/100,000 EEPROM

- Data retention: 20 years at 85°C/100 years at 25°C(1)

- Optional Boot Code Section with Independent Lock Bits

• In-System Programming by On-chip Boot Program

• True Read-While-Write Operation

- Programming Lock for Software Security

• Microchip QTouch® library support

- Capacitive touch buttons, sliders and wheels

- Microchip QTouch and QMatrix™ acquisition

- Up to 64 sense channels
