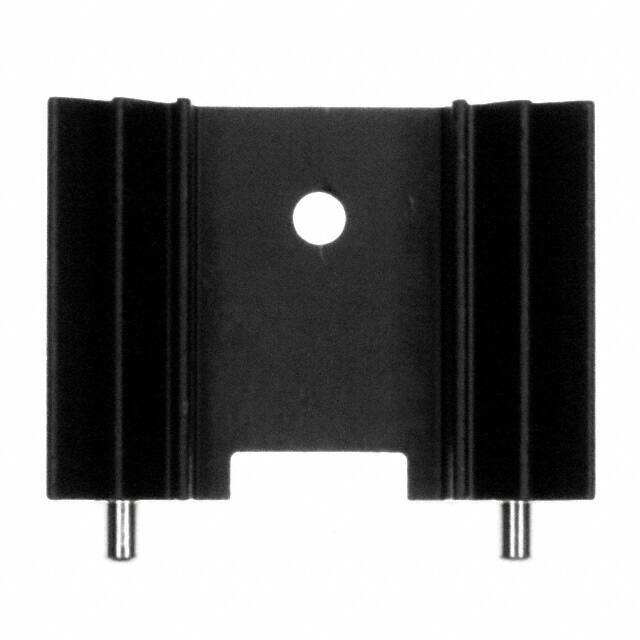

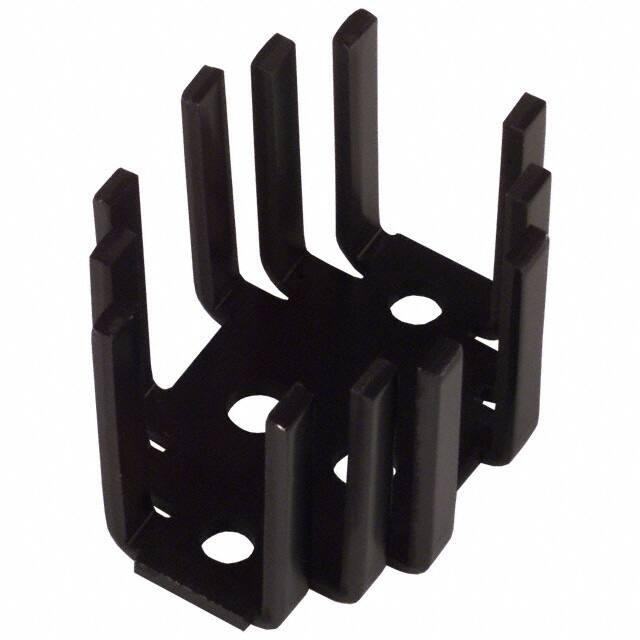

Heat Sinks

Name	Manufacturer	Pricing(USD)	Quantity	Datasheet	Factory Lead Time	Mount	Material	Shape	Packaging	Published	Series	Part Status	Moisture Sensitivity Level (MSL)	Color	Depth	Diameter	Length	RoHS Status	Lead Free	Contact Plating	Radiation Hardening	Package / Case	REACH SVHC	Height	Width	Weight	Type	Body Material	Power Dissipation	Thermal Resistance @ Natural	Height Off Base (Height of Fin)	Attachment Method	Package Cooled	Thermal Resistance @ Forced Air Flow	Material Finish	Power Dissipation @ Temperature Rise
580400B00000G	Aavid, Thermal Division of Boyd Corporation	0.0000	RFQ Min: 1 Mult: 1	download	7 Weeks	Press Fit	Aluminum	Rectangular, Fins	Bulk	2007		Active	Not Applicable	Black	17.78mm		1.055 26.80mm	RoHS Compliant	Lead Free					14.12mm	0.700 17.78mm		Top Mount			39.00°C/W	0.556 14.12mm	Press Fit, Slide On	20-DIP	20.00°C/W @ 200 LFM	Black Anodized	2.0W @ 60°C
592201B03400G	Aavid, Thermal Division of Boyd Corporation	0.0000	RFQ Min: 1 Mult: 1	download	7 Weeks	Clip, PC Pin, Solder	Aluminum	Rectangular, Fins	Bulk	2007		Active	Not Applicable	Black	12.7mm		1.970 50.04mm	RoHS Compliant	Lead Free			TO-218		50.038mm	1.950 49.53mm		Board Level, Vertical			6.80°C/W	0.500 12.70mm	Clip and PC Pin	TO-218	1.00°C/W @ 500 LFM	Black Anodized	4.0W @ 30°C
6022BG	Aavid, Thermal Division of Boyd Corporation	0.0000	RFQ Min: 1 Mult: 1	download	7 Weeks	Bolt, PC Pin	Aluminum	Rectangular, Fins		2006		Active	Not Applicable	Black	6.35mm		1.210 30.73mm	RoHS Compliant	Lead Free		No	TO-220		30.73mm	0.875 22.22mm		Board Level, Vertical			16.70°C/W	0.250 6.35mm	Bolt On and PC Pin	TO-220	6.00°C/W @ 400 LFM	Black Anodized	2.0W @ 40°C
530614B00000G	Aavid, Thermal Division of Boyd Corporation	0.0000	RFQ Min: 1 Mult: 1	download	7 Weeks	Bolt, Screw	Aluminum	Rectangular, Fins	Bulk	2007		Active	Not Applicable	Black	29.97mm		1.180 29.97mm	RoHS Compliant	Lead Free		No	TO-220	No SVHC	29.97mm	1.000 25.40mm	113.398093g	Board Level		4.5W	16.70°C/W	0.500 12.70mm	Bolt On	TO-220	6.00°C/W @ 600 LFM	Black Anodized	4.0W @ 80°C
581102B00000	Aavid, Thermal Division of Boyd Corporation	0.0000	RFQ Min: 1 Mult: 1	download	7 Weeks	Bolt	Aluminum	Rectangular, Fins	Bulk	2007		Active	Not Applicable	Black			1.500 38.10mm	RoHS Compliant	Lead Free			TO-220		38.1mm	0.640 16.26mm		Board Level, Vertical		2.5W		0.640 16.26mm	Bolt On	TO-220	3.00°C/W @ 500 LFM	Black Anodized	3.0W @ 50°C
6222BG	Aavid, Thermal Division of Boyd Corporation	0.0000	RFQ Min: 1 Mult: 1	download	9 Weeks	Bolt	Aluminum	Square, Fins		2007		Active	Not Applicable	Black	26.92mm		1.060 26.92mm	RoHS Compliant	Lead Free		No		No SVHC	31.75mm	1.060 26.92mm		Board Level			9.40°C/W	1.250 31.75mm	Bolt On	Bridge Rectifiers	3.00°C/W @ 400 LFM	Black Anodized	3.0W @ 30°C
637302F00000G	Aavid, Thermal Division of Boyd Corporation	0.0000	RFQ Min: 1 Mult: 1	download	7 Weeks		Aluminum	Rectangular, Pin Fins		2016		Active	Not Applicable				48.000 1219.20mm	RoHS Compliant							3.000 76.20mm		Top Mount, Extrusion				2.250 57.15mm	Adhesive		1.00°C/W @ 200 LFM
M49165B021000G	Aavid, Thermal Division of Boyd Corporation	0.0000	RFQ Min: 1 Mult: 1	download	7 Weeks		Aluminum	Rectangular, Fins			Max Clip System™	Active	Not Applicable				1.650 41.91mm								0.866 22.00mm		Board Level, Vertical				1.260 32.00mm	Clip and PC Pin	TO-126, TO-220, TO-247		Black Anodized
2227B	Aavid, Thermal Division of Boyd Corporation	0.0000	RFQ Min: 1 Mult: 1	download	9 Weeks	Press Fit	Aluminum	Cylindrical				Active	Not Applicable	Black		0.315 8.00mm ID 1.250 31.75mm OD		Non-RoHS Compliant	Lead Free			TO-5	Unknown	10.16mm			Board Level			21.00°C/W	0.400 10.16mm	Press Fit	TO-5	14.00°C/W @ 200 LFM	Black Anodized	1.8W @ 50°C
325705B00000G	Aavid, Thermal Division of Boyd Corporation	0.0000	RFQ Min: 1 Mult: 1	download	9 Weeks	Press Fit	Aluminum	Cylindrical		2007		Active	Not Applicable	Black		0.318 8.07mm ID 0.500 12.70mm OD	6.35mm	RoHS Compliant	Lead Free			TO-5	No SVHC	6.35mm			Board Level			60.00°C/W	0.250 6.35mm	Press Fit	TO-5	35.00°C/W @ 200 LFM	Black Anodized	1.0W @ 60°C
375024B00032G	Aavid, Thermal Division of Boyd Corporation	0.0000	RFQ Min: 1 Mult: 1	download	8 Weeks		Aluminum	Square, Pin Fins	Bulk	2002		Active	Not Applicable	Black	40mm		1.575 40.00mm	RoHS Compliant	Lead Free		No	BGA	No SVHC	18mm	1.575 40.01mm		Top Mount	Metal		12.00°C/W	0.709 18.00mm	Thermal Tape, Adhesive (Included)	BGA	4.30°C/W @ 200 LFM	Black Anodized	2.0W @ 30°C
6230DG (COPPER)	Aavid, Thermal Division of Boyd Corporation	0.0000	RFQ Min: 1 Mult: 1	download	9 Weeks		Copper	Rectangular, Fins				Active	Not Applicable				1.180 29.97mm	RoHS Compliant							1.000 25.40mm		Board Level, Vertical			12.50°C/W	0.500 12.70mm	Bolt On and PC Pin	TO-220	6.00°C/W @ 300 LFM	Tin	1.0W @ 20°C
341600F00000G	Aavid, Thermal Division of Boyd Corporation	0.0000	RFQ Min: 1 Mult: 1		9 Weeks	Adhesive	Copper			2009		Active	Not Applicable	Black			50.8mm	RoHS Compliant		Tin		BGA		330μm	12.7mm
529901B00000	Aavid, Thermal Division of Boyd Corporation	0.0000	RFQ Min: 1 Mult: 1	download	7 Weeks	Bolt	Aluminum	Rectangular, Fins		2007		Active	Not Applicable	Black			2.000 50.80mm	Non-RoHS Compliant				Radial		41.91mm	1.650 41.91mm		Board Level			4.50°C/W	1.000 25.40mm	Bolt On	TO-218	1.00°C/W @ 800 LFM	Black Anodized	6.0W @ 30°C
647064	Aavid, Thermal Division of Boyd Corporation	28.9725	Add to Cart Min: 1 Mult: 1				Copper	Rectangular, Fins				Active	Not Applicable				4.252 108.00mm	RoHS Compliant							3.071 78.00mm		Top Mount				2.519 64.00mm	Bolt On	Intel® Xeon® CPU
529802B02500G	Aavid, Thermal Division of Boyd Corporation	0.0000	RFQ Min: 1 Mult: 1	download	7 Weeks	Bolt, PC Pin, Solder	Aluminum	Rectangular, Fins	Bulk	2007		Active	Not Applicable	Black	25.4mm		1.000 25.40mm	RoHS Compliant	Lead Free		No	Radial	No SVHC	38.1mm	1.650 41.91mm		Board Level, Vertical			3.70°C/W	1.500 38.10mm	Bolt On and PC Pin	TO-220	3.00°C/W @ 200 LFM	Black Anodized	10.0W @ 50°C
M47059B011000G	Aavid, Thermal Division of Boyd Corporation	0.0000	RFQ Min: 1 Mult: 1	download	7 Weeks		Aluminum	Rectangular, Angled Fins			Max Clip System™	Active	Not Applicable				0.590 15.00mm								0.764 19.40mm		Board Level, Vertical				1.240 31.50mm	Clip and PC Pin	TO-126, TO-220, TO-247		Black Anodized
529901B02100G	Aavid, Thermal Division of Boyd Corporation	0.0000	RFQ Min: 1 Mult: 1	download	7 Weeks	Bolt, PC Pin, Solder	Aluminum	Rectangular, Fins		2007		Active	Not Applicable	Black	50.8mm		2.000 50.80mm	RoHS Compliant	Lead Free		No	Radial		50.8mm	1.650 41.91mm		Board Level, Vertical			4.50°C/W	1.000 25.40mm	Bolt On and PC Pin	TO-218	1.00°C/W @ 800 LFM	Black Anodized	12.0W @ 50°C
533402B02552G	Aavid, Thermal Division of Boyd Corporation	0.0000	RFQ Min: 1 Mult: 1	download	7 Weeks	Clip, PC Pin	Aluminum	Rectangular, Fins	Box	2007		Active	Not Applicable	Black	25.4mm		1.650 41.91mm	RoHS Compliant	Lead Free			TO-220		38.1mm	1.000 25.40mm		Board Level, Vertical			5.00°C/W	1.500 38.10mm	Clip and PC Pin	TO-220	2.00°C/W @ 500 LFM	Black Anodized	8.0W @ 40°C
PF720	Aavid, Thermal Division of Boyd Corporation	0.0000	RFQ Min: 1 Mult: 1		8 Weeks	Clip, PCB, Through Hole	Aluminium	Rectangular		2001		Active	Not Applicable				0.787 20.00mm	RoHS Compliant				TO-220	No SVHC	20mm	0.776 19.70mm		Board Level			28.9°C/W	0.319 8.10mm	Clip and PC Pin, Bolt On	TO-220		Black Paint
783502F00000G	Aavid, Thermal Division of Boyd Corporation	0.0000	RFQ Min: 1 Mult: 1	download	7 Weeks		Aluminum	Rectangular, Pin Fins		2016		Active	Not Applicable				49.500 1257.30mm	RoHS Compliant							1.950 49.53mm		Board Level, Vertical, Extrusion				3.366 85.50mm	PC Pin
500503B00000G	Aavid, Thermal Division of Boyd Corporation	0.0000	RFQ Min: 1 Mult: 1	download		Bolt	Aluminum	Square, Pin Fins	Bulk	2003		Active	Not Applicable	Black			2.500 63.50mm	RoHS Compliant	Lead Free			TO-3		20.86mm	2.500 63.50mm		Board Level		14W	4.90°C/W	0.821 20.86mm	Bolt On	TO-3	2.00°C/W @ 500 LFM	Black Anodized	6.0W @ 40°C
577304B00000G	Aavid, Thermal Division of Boyd Corporation	0.0000	RFQ Min: 1 Mult: 1	download	7 Weeks	Bolt	Aluminum	Rectangular, Fins	Bulk	2007		Active	Not Applicable	Black	13.21mm		0.750 19.05mm	RoHS Compliant	Lead Free		No	TO-202	No SVHC	9.53mm	0.520 13.21mm	113.398093g	Board Level			27.20°C/W	0.375 9.52mm	Bolt On	TO-202	8.00°C/W @ 500 LFM	Black Anodized	1.0W @ 30°C
575200B00000G	Aavid, Thermal Division of Boyd Corporation	0.0000	RFQ Min: 1 Mult: 1	download	7 Weeks	Press Fit	Aluminum	Rectangular, Fins	Bulk	2003		Active	Not Applicable	Black			0.602 15.29mm	RoHS Compliant	Lead Free		No	TO-92	No SVHC	18.29mm	15.29mm	113.398093g	Board Level, Vertical			60.00°C/W	0.720 18.29mm	Press Fit	TO-92	17.50°C/W @ 400 LFM	Black Anodized	0.3W @ 20°C
500203B00000G	Aavid, Thermal Division of Boyd Corporation	0.0000	RFQ Min: 1 Mult: 1	download	7 Weeks	Bolt	Aluminum	Square, Pin Fins		2007		Active	Not Applicable	Black			1.810 45.97mm	RoHS Compliant				TO-3		19.05mm	1.810 45.97mm		Board Level			6.20°C/W	0.750 19.05mm	Bolt On	TO-3	1.50°C/W @ 700 LFM	Black Anodized	12.0W @ 70°C
579704B00000G	Aavid, Thermal Division of Boyd Corporation	0.0000	RFQ Min: 1 Mult: 1	download	7 Weeks	Clip	Aluminum	Rectangular, Fins		2007		Active	Not Applicable	Black			0.900 22.86mm	RoHS Compliant				TO-202		22.86mm	0.745 18.92mm		Board Level, Vertical			24.00°C/W	0.420 10.67mm	Clip	TO-202	11.00°C/W @ 400 LFM	Black Anodized	1.5W @ 40°C
2207/PR11B ASSY	Aavid, Thermal Division of Boyd Corporation	0.0000	RFQ Min: 1 Mult: 1	download	9 Weeks					2007		Active	Not Applicable					RoHS Compliant
529902B00000	Aavid, Thermal Division of Boyd Corporation	0.0000	RFQ Min: 1 Mult: 1	download		Bolt	Aluminum	Rectangular, Fins		2005		Active	Not Applicable				2.000 50.80mm	Non-RoHS Compliant						50.8mm	1.650 41.91mm		Board Level			4.50°C/W	1.000 25.40mm	Bolt On	TO-220	1.50°C/W @ 500 LFM	Black Anodized	6.0W @ 30°C
2286B	Aavid, Thermal Division of Boyd Corporation	0.0000	RFQ Min: 1 Mult: 1	download	9 Weeks	Adhesive	Aluminum	Square	Box			Active	Not Applicable				0.790 20.07mm	Non-RoHS Compliant	Lead Free			Radial			0.790 20.07mm		Board Level				0.155 3.94mm	Thermal Tape, Adhesive (Not Included)	BGA	20.00°C/W @ 200 LFM	Black Anodized	1.0W @ 40°C
7021BG	Aavid, Thermal Division of Boyd Corporation	0.0000	RFQ Min: 1 Mult: 1	download	7 Weeks	Bolt	Aluminum	Rectangular, Fins	Box	2007		Active	Not Applicable	Black	9.65mm		1.450 36.83mm	RoHS Compliant	Lead Free			TO-220		36.83mm	1.750 44.45mm		Board Level			6.80°C/W	0.380 9.65mm	Bolt On	TO-220	4.00°C/W @ 300 LFM	Black Anodized	6.0W @ 50°C
