Heat Sinks

Name	Manufacturer	Pricing(USD)	Quantity	Datasheet	Factory Lead Time	Mount	Material	Shape	Packaging	Published	Series	Part Status	Moisture Sensitivity Level (MSL)	Color	Depth	Diameter	Length	RoHS Status	Lead Free	Contact Plating	Radiation Hardening	Number of Pins	Package / Case	REACH SVHC	Height	Width	Weight	Type	Body Material	Natural Thermal Resistance	Thermal Resistance @ Natural	Height Off Base (Height of Fin)	Attachment Method	Package Cooled	Thermal Resistance @ Forced Air Flow	Material Finish	Power Dissipation @ Temperature Rise
574902B00000G	Aavid, Thermal Division of Boyd Corporation	0.0000	RFQ Min: 1 Mult: 1	download	7 Weeks	Clip	Aluminum	Rectangular, Fins		2007		Active	Not Applicable	Black	10.03mm		1.375 34.93mm	RoHS Compliant			No		TO-220		34.93mm	0.860 21.84mm		Board Level			16.00°C/W	0.395 10.03mm	Clip	TO-220	6.00°C/W @ 400 LFM	Black Anodized	2.5W @ 40°C

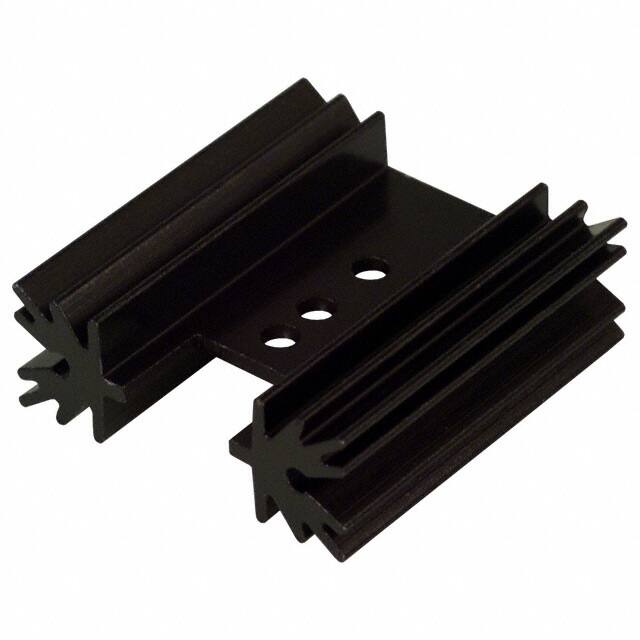

531102B00000G	Aavid, Thermal Division of Boyd Corporation	6.7539	Add to Cart Min: 1 Mult: 1	download	8 Weeks	Bolt, Screw	Aluminum	Rectangular, Fins		2007		Active	Not Applicable	Black	12.7mm		1.500 38.10mm	RoHS Compliant	Lead Free				TO-220		38.1mm	1.375 34.93mm		Board Level, Vertical			10.40°C/W	0.500 12.70mm	Bolt On	TO-220, TO-202	3.00°C/W @ 500 LFM	Black Anodized	7.0W @ 70°C
591202B03100G	Aavid, Thermal Division of Boyd Corporation	0.0000	RFQ Min: 1 Mult: 1	download	7 Weeks	Clip, PC Pin	Aluminum	Rectangular, Fins		2007		Active	Not Applicable	Black	15.24mm		0.600 15.24mm	RoHS Compliant					TO-220		12.7mm	0.500 12.70mm		Board Level			26.80°C/W	0.500 12.70mm	Clip and PC Pin	TO-220, TO-262	16.00°C/W @ 200 LFM	Black Anodized	1.0W @ 40°C
782452F00000G	Aavid, Thermal Division of Boyd Corporation	0.0000	RFQ Min: 1 Mult: 1	download	7 Weeks		Aluminum	Rectangular, Pin Fins		2016		Active	Not Applicable				49.500 1257.30mm	RoHS Compliant								1.063 27.00mm		Board Level, Vertical, Extrusion				2.362 60.00mm	Clip and PC Pin		1.60°C/W @ 200 LFM
HF20G	Aavid, Thermal Division of Boyd Corporation	0.0000	RFQ Min: 1 Mult: 1	download	7 Weeks	Clip, PC Pin	Aluminum	Rectangular, Fins		2007		Active	Not Applicable	Black	20mm		0.790 20.07mm	RoHS Compliant	Lead Free		No		TO-220		28mm	1.102 28.00mm		Board Level, Vertical			13.10°C/W	0.787 19.99mm	Clip and PC Pin	TO-220	6.00°C/W @ 400 LFM	Black Anodized	1.0W @ 20°C
576203B00000G	Aavid, Thermal Division of Boyd Corporation	0.0000	RFQ Min: 1 Mult: 1	download	7 Weeks	Bolt, Screw	Aluminum	Square, Pin Fins		2007		Active	Not Applicable	Black			1.810 45.97mm	RoHS Compliant					TO-3		19.05mm	1.810 45.97mm		Board Level			6.20°C/W	0.750 19.05mm	Bolt On	TO-3	2.50°C/W @ 400 LFM	Black Anodized	4.0W @ 30°C
530102B00150G	Aavid, Thermal Division of Boyd Corporation	0.0000	RFQ Min: 1 Mult: 1	download	7 Weeks	Clip	Aluminum	Square, Fins	Bulk	2007		Active	Not Applicable	Black	12.45mm		1.750 44.45mm	RoHS Compliant	Lead Free		No		TO-220	No SVHC	44.45mm	0.490 12.44mm		Board Level, Vertical			6.30°C/W	1.750 44.45mm	Clip and Board Mounts	TO-220	1.50°C/W @ 400 LFM	Black Anodized	4.0W @ 30°C
374624B00032G	Aavid, Thermal Division of Boyd Corporation	0.0000	RFQ Min: 1 Mult: 1	download	8 Weeks		Aluminum	Square, Pin Fins	Bulk	2002		Active	Not Applicable	Black	35mm		1.378 35.00mm	RoHS Compliant	Lead Free		No		BGA	No SVHC	10mm	1.378 35.00mm		Top Mount	Metal		23.40°C/W	0.394 10.00mm	Thermal Tape, Adhesive (Included)	BGA	7.60°C/W @ 200 LFM	Black Anodized	1.5W @ 40°C
374724B00035G	Aavid, Thermal Division of Boyd Corporation	0.0000	RFQ Min: 1 Mult: 1	download	8 Weeks		Aluminum	Square, Pin Fins		2002		Active	Not Applicable	Black	35mm		1.378 35.00mm	RoHS Compliant	Lead Free		No		BGA	No SVHC	18mm	1.378 35.00mm		Top Mount			15.30°C/W	0.709 18.00mm	Thermal Tape, Adhesive (Included)	BGA	5.20°C/W @ 200 LFM	Black Anodized	3.0W @ 50°C
654452F00000G	Aavid, Thermal Division of Boyd Corporation	0.0000	RFQ Min: 1 Mult: 1	download	7 Weeks		Aluminum	Rectangular, Fins		2016		Active	Not Applicable				48.000 1219.20mm	RoHS Compliant								7.340 186.44mm		Top Mount, Extrusion				1.312 33.32mm	Adhesive
6021BG	Aavid, Thermal Division of Boyd Corporation	0.0000	RFQ Min: 1 Mult: 1	download	7 Weeks	Bolt, PC Pin	Aluminum	Rectangular, Fins		2007		Active	Not Applicable	Black	12.7mm		1.180 29.97mm	RoHS Compliant	Lead Free		No		TO-220	No SVHC	29.97mm	1.000 25.40mm	113.398093g	Board Level, Vertical			12.50°C/W	0.500 12.70mm	Bolt On and PC Pin	TO-220	5.00°C/W @ 500 LFM	Black Anodized	2.0W @ 30°C
627252F00000	Aavid, Thermal Division of Boyd Corporation	0.0000	RFQ Min: 1 Mult: 1	download	7 Weeks		Aluminum	Rectangular, Fins				Active	Not Applicable				55.500 1409.70mm	RoHS Compliant								9.750 247.65mm		Top Mount, Extrusion				2.280 57.91mm	Adhesive		0.20°C/W @ 700 LFM
593101B03600G	Aavid, Thermal Division of Boyd Corporation	0.0000	RFQ Min: 1 Mult: 1	download	7 Weeks	Bolt, PC Pin, Solder	Aluminum	Rectangular, Fins		2007		Active	Not Applicable	Black	12.7mm		1.640 41.66mm	RoHS Compliant	Lead Free				TO-218	Unknown	41.66mm	1.700 43.18mm		Board Level, Vertical			8.60°C/W	0.500 12.70mm	Bolt On and PC Pin	TO-218, TO-247	4.00°C/W @ 300 LFM	Black Anodized	6.0W @ 50°C
507302B00000G	Aavid, Thermal Division of Boyd Corporation	0.0000	RFQ Min: 1 Mult: 1	download	7 Weeks	Bolt, PCB, Through Hole	Aluminum	Square, Fins	Bulk	2007		Active	Not Applicable	Black	19.05mm		0.750 19.05mm	RoHS Compliant	Lead Free		No		TO-220	No SVHC	19.05mm	0.750 19.05mm	113.398093g	Board Level			24.00°C/W	0.380 9.65mm	Bolt On	TO-220	10.00°C/W @ 200 LFM	Black Anodized	2.5W @ 60°C
530001B02500G	Aavid, Thermal Division of Boyd Corporation	0.0000	RFQ Min: 1 Mult: 1	download	7 Weeks	Bolt, PC Pin, Solder	Aluminum	Rectangular, Fins	Bulk	2007		Active	Not Applicable	Black	25.4mm		2.500 63.50mm	RoHS Compliant	Lead Free		No		TO-218	No SVHC	63.5mm	1.650 41.91mm		Board Level, Vertical			8.00°C/W	1.000 25.40mm	Bolt On and PC Pin	TO-218	2.00°C/W @ 300 LFM	Black Anodized	20.0W @ 60°C
533002B02500G	Aavid, Thermal Division of Boyd Corporation	0.0000	RFQ Min: 1 Mult: 1	download		Bolt, PC Pin	Aluminum	Rectangular, Fins		2007		Active	Not Applicable				1.000 25.40mm	RoHS Compliant								1.375 34.93mm		Board Level, Vertical			13.00°C/W	0.500 12.70mm	Bolt On and PC Pin	TO-220	4.00°C/W @ 400 LFM	Black Anodized	2.0W @ 30°C
342941	Aavid, Thermal Division of Boyd Corporation	0.0000	RFQ Min: 1 Mult: 1	download	6 Weeks	Push Pin	Copper	Square, Fins		2016		Active	Not Applicable				1.594 40.50mm	RoHS Compliant								1.575 40.00mm		Top Mount			13.30°C/W	0.531 13.50mm	Push Pin	BGA	2.50°C/W @ 200 LFM	AavSHIELD 3C
574204B03300G	Aavid, Thermal Division of Boyd Corporation	0.0000	RFQ Min: 1 Mult: 1	download	7 Weeks	Clip, PC Pin, Solder	Aluminum	Rectangular, Fins		2007		Active	Not Applicable	Black			0.900 22.86mm	RoHS Compliant	Lead Free				TO-202		22.86mm	1.020 25.91mm		Board Level, Vertical			16.80°C/W	0.420 10.67mm	Clip and PC Pin	TO-202	8.00°C/W @ 200 LFM	Black Anodized	3.0W @ 50°C
2292BG	Aavid, Thermal Division of Boyd Corporation	0.0000	RFQ Min: 1 Mult: 1	download	9 Weeks	Adhesive	Aluminum	Cylindrical		2000		Active	Not Applicable	Black		0.300 7.62mm ID 1.125 28.57mm OD		RoHS Compliant	Lead Free	Tin			Radial		7.62mm			Board Level		8 °C/W			Thermal Tape, Adhesive (Not Included)	BGA	8.00°C/W @ 400 LFM	Black Anodized	1.5W @ 40°C
7025B-MTG	Aavid, Thermal Division of Boyd Corporation	0.0000	RFQ Min: 1 Mult: 1	download	7 Weeks	Bolt, PC Pin, Solder	Aluminum	Rectangular, Fins	Box	2007		Active	Not Applicable	Black	24.13mm		1.130 28.70mm	RoHS Compliant	Lead Free		No		TO-220	No SVHC	29mm	1.900 48.26mm	113.398093g	Board Level, Vertical			6.80°C/W	0.950 24.13mm	Bolt On and PC Pin	TO-220	4.00°C/W @ 300 LFM	Black Anodized	6.0W @ 50°C
532802B02500G	Aavid, Thermal Division of Boyd Corporation	0.0000	RFQ Min: 1 Mult: 1	download	7 Weeks	Bolt, PC Pin	Aluminum	Rectangular, Fins		2007		Active	Not Applicable	Black			2.500 63.50mm	RoHS Compliant	Lead Free				Radial		63.5mm	1.650 41.91mm		Board Level, Vertical			4.20°C/W	1.000 25.40mm	Bolt On and PC Pin	TO-220	2.00°C/W @ 200 LFM	Black Anodized	6.0W @ 30°C
5022NG	Aavid, Thermal Division of Boyd Corporation	0.0000	RFQ Min: 1 Mult: 1		9 Weeks							Active	Not Applicable					RoHS Compliant
6399BG	Aavid, Thermal Division of Boyd Corporation	0.0000	RFQ Min: 1 Mult: 1	download	7 Weeks		Anodized			2007		Active	Not Applicable	Black	25.4mm		25.4mm	RoHS Compliant	Lead Free		No		TO-220	No SVHC	50mm	41.91mm		Passive		3.3 °C/W
M46162B021000G	Aavid, Thermal Division of Boyd Corporation	0.0000	RFQ Min: 1 Mult: 1	download	7 Weeks		Aluminum	Rectangular, Fins			Max Clip System™	Active	Not Applicable				1.620 41.15mm									1.181 30.00mm		Board Level, Vertical				1.909 48.50mm	Clip and PC Pin	TO-126, TO-220, TO-247		Black Anodized
2285B	Aavid, Thermal Division of Boyd Corporation	0.0000	RFQ Min: 1 Mult: 1	download	9 Weeks		Aluminum					Active	Not Applicable					Non-RoHS Compliant																		Black Anodized
1116BG	Aavid, Thermal Division of Boyd Corporation	0.0000	RFQ Min: 1 Mult: 1	download	11 Weeks					2007		Active	Not Applicable					RoHS Compliant
574802B00000G	Aavid, Thermal Division of Boyd Corporation	0.0000	RFQ Min: 1 Mult: 1	download		Clip	Aluminum	Rectangular, Fins		2007		Active	Not Applicable	Black			0.900 22.86mm	RoHS Compliant					TO-220		22.86mm	1.020 25.91mm		Board Level			20.40°C/W	0.420 10.67mm	Clip	TO-220	6.00°C/W @ 500 LFM	Black Anodized	3.0W @ 60°C
533602B02500G	Aavid, Thermal Division of Boyd Corporation	0.0000	RFQ Min: 1 Mult: 1	download		Bolt, PC Pin	Aluminum	Rectangular, Fins		2007		Active	Not Applicable				2.500 63.50mm	RoHS Compliant								1.650 41.91mm		Board Level, Vertical			3.80°C/W	1.000 25.40mm	Bolt On and PC Pin	TO-220	2.00°C/W @ 300 LFM	Black Anodized	16.0W @ 50°C
508700B00000G	Aavid, Thermal Division of Boyd Corporation	0.0000	RFQ Min: 1 Mult: 1	download	7 Weeks	Adhesive	Aluminum	Rectangular, Fins	Bulk	2003		Active	Not Applicable	Black	13.46mm		2.000 50.80mm	RoHS Compliant	Lead Free	Tin		40			4.83mm	0.530 13.46mm		Top Mount			27.20°C/W	0.190 4.83mm	Thermal Tape, Adhesive (Not Included)	40-DIP	16.00°C/W @ 300 LFM	Black Anodized	1.0W @ 30°C
2334BG	Aavid, Thermal Division of Boyd Corporation	0.0000	RFQ Min: 1 Mult: 1	download	7 Weeks					2007		Active	Not Applicable					RoHS Compliant
