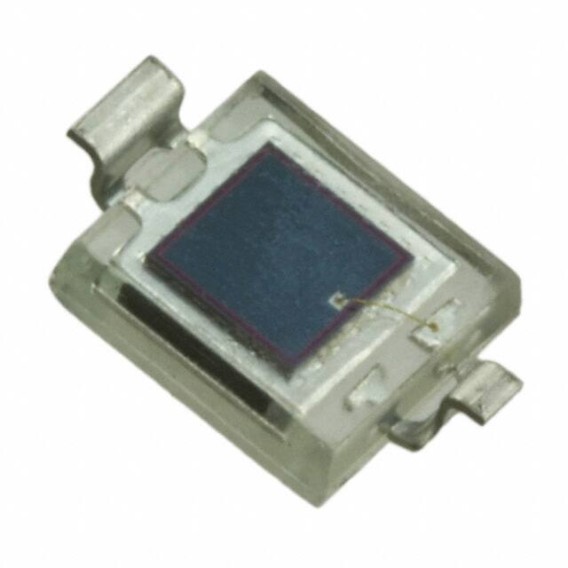

VBP104SR
VBP104SR
879-VBP104SR
2-SMD, Z-Bend
VBP104SR datasheet pdf and Optical Sensors - Photodiodes product details from Vishay Semiconductor Opto Division stock available at HK JDW
In Stock : 999
Share
Please send RFQ, we will respond immediately.








Product Details
Purchasing and Inquiry
VBP104SR Overview
Designed to protect these photodiodes against damage, these photodiodes are packaged in the Digi-Reel?. It is necessary to place the photodiodes into 2-SMD, Z-Bend packages in order to protect them from damage. When the photodiodes are reverse-biased, the voltage should never exceed 60V. There are 2 pins on the photodiodes. In a circuit, the photodiodes may release 215mW heat. A reverse anode voltage of 60V should be applied to the photodiodes. Photodiodes should release 215mW heat in a circuit. DC photodiodes can work properly under reverse voltages of 60V in the DC circuit. Photodiodes are supposed to operate at 1.3V voltage. If you want photodiodes to work, you'll need a breakdown voltage of 60V. The photodiode operates at 2nA current even in the absence of light input.
VBP104SR Features
Moisture Sensitivity Level (MSL): 3 (168 Hours)
Operating Temperature: -40°C~100°C
Packaging: Digi-Reel?
Diode Type: PIN
Mount: PCB, Surface Mount
Spectral Range: 430nm ~ 1100nm
Viewing Angle: 130°
VBP104SR Applications
There are a lot of Vishay Semiconductor Opto Division VBP104SR Photodiodes applications.
- Position sensing
- High speed photo detectors
- Diode Laser Monitoring
- Industrial Automation
- YAG laser detection
- Pulse Oximetry
- Vision Controls
- Medical and Industrial
- Shaft encoders
- Low Cost Light Monitoring
