TSC2046EQPWRQ1
TSC2046EQPWRQ1
feilidi-TSC2046EQPWRQ1

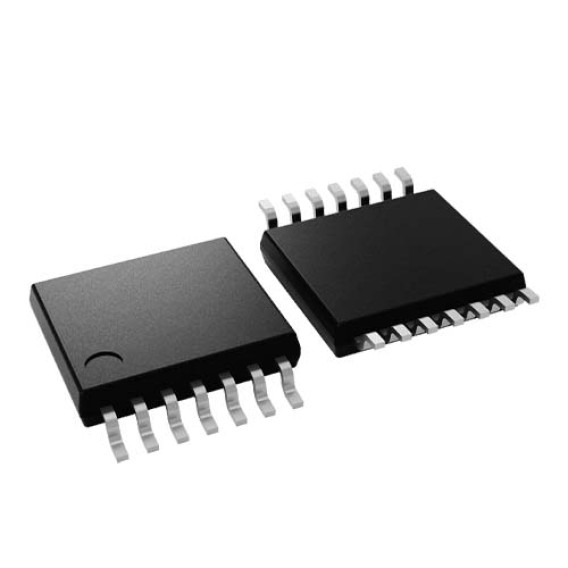

16-TSSOP (0.173, 4.40mm Width)
12 Bit Touch Screen Controller Automotive, AEC-Q100 Series TSC2046 16-TSSOP (0.173, 4.40mm Width)
Unit Price: $13.8872
Ext Price: $13.8872
In Stock : 4000
Share
Qty
Unit Price
Ext Price
-
10
$13.10
$131.01
-
100
$12.36
$1,235.96
-
500
$11.66
$5,830.00
-
1000
$11.00
$11,000.00
Not the price you want? Send RFQ Now and we'll contact you ASAP.
Product Details
Purchasing and Inquiry
The TSC2046E is the next-generation version of the ADS7846 4-wire touch screen controller, supporting a low-voltage I/O interface from 1.5 V to 5.25 V. The TSC2046E is 100% pin-compatible with the existing ADS7846, and drops into the same socket. This design allows for an easy upgrade of current applications to the new version. The TSC2046E also has an on-chip 2.5-V reference that can be used for the auxiliary input, battery monitor, and temperature measurement modes. The reference can also be powered down when not used to conserve power. The internal reference operates down to a supply voltage of 2.7 V, while monitoring the battery voltage from 0 V to 6 V.
The low power consumption of less than 0.75 mW (typ) at 2.7 V (reference off), high-speed (up to 125-kHz sample rate), and on-chip drivers make the TSC2046E an ideal choice for battery-operated systems such as personal digital assistants (PDAs) with resistive touch screens, pagers, cellular phones, and other portable equipment. The TSC2046E is available in a TSSOP-16 package and is specified over the –40°C to +125°C temperature range.
- ualified for Automotive Applications
- Same Pinout as ADS7846
- 2.2-V to 5.25-V Operation
- 1.5-V to 5.25-V Digital I/O
- Internal 2.5-V Reference
- Direct Battery Measurement (0 V to 6 V)
- On-Chip Temperature Measurement
- Touch-Pressure Measurement
- QSPI™ and SPI™ 3-Wire Interface
- Auto Power-Down
- Exceeds IEC 61000-4-2 ESD Requirements
- ±15kV Contact Discharge
- No External Components Needed
- Available In a TSSOP-16 (PW) Package
- APPLICATIONS
- Touch Screen Monitors
QSPI, SPI are trademarks of Motorola Inc.
Microwire is a trademark of National Semiconductor Corporation.
All other trademarks are the property of their respective owners.
