TPS82674SIPR
TPS82674SIPR
feilidi-TPS82674SIPR

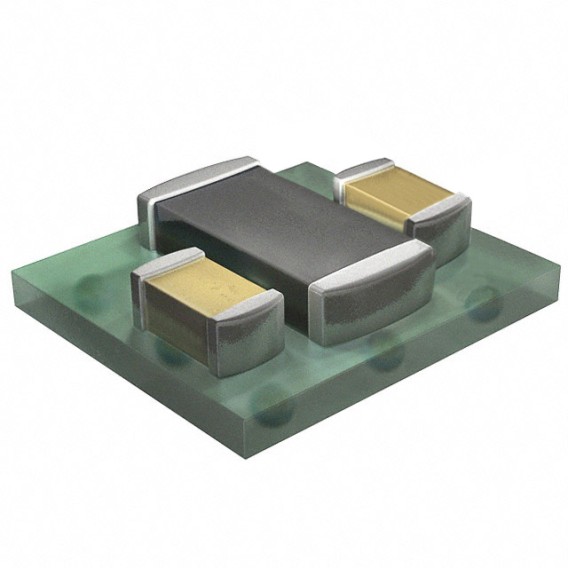

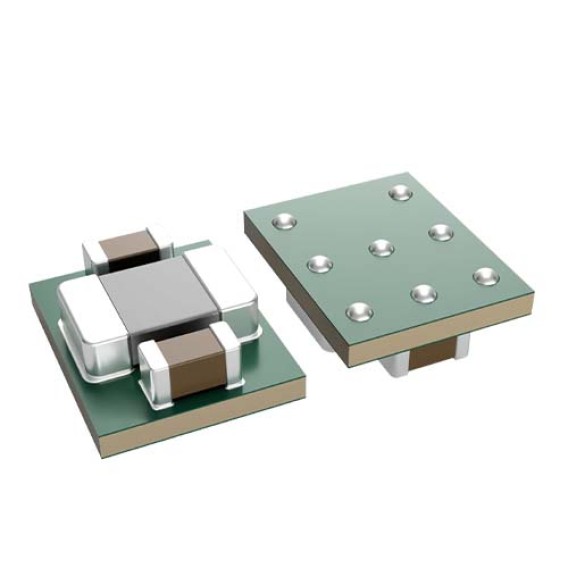

8-BGA Module
600mA, high-efficiency MicroSiP™ buck converter module (<1.0mm thick).
Unit Price: $11.1982
Ext Price: $11.1982
In Stock : 6000
Share
Qty
Unit Price
Ext Price
-
10
$10.56
$105.64
-
100
$9.97
$996.63
-
500
$9.40
$4,701.10
-
1000
$8.87
$8,870.00
Not the price you want? Send RFQ Now and we'll contact you ASAP.
Product Details
Purchasing and Inquiry
The TPS8267x device is a complete 600-mA DC/DC step-down power supply targeted at low-power applications. The package includes a switching regulator, inductor, and input/output capacitors. The design requires no additional components. The TPS8267x is based on a high-frequency synchronous step-down DC/DC converter optimized for battery-powered portable applications. MicroSiPTM DC/DC converters operate at a stable 5.5MHz switching frequency and can enter a power save mode at light load currents to maintain high efficiency across the entire load current range. PFM mode reduces quiescent current to 17µA (typ) during light load operation, extending battery life. For noise-sensitive applications, the device features PWM spread spectrum, which provides a stable output with low noise and reduces the effect of noise on the input. The combination of high power supply rejection ratio (PSRR) and AC load modulation performance makes this device suitable for replacing linear regulators for higher power conversion efficiency. The TPS8267x is packaged in a compact 2.3mm x 2.9mm ball grid array (BGA) package with a small outline (less than 1.0mm thick), suitable for automated assembly with standard surface mount equipment.
characteristic
• 90% Efficiency at 5.5MHz
• 17µA Quiescent Current
• Wide VIN Range from 2.3V to 4.8V
• 5.5MHz Stable Frequency Operation
• Spread Spectrum, Pulse Width Modulation (PWM) Frequency Jitter
• Load and Line Transients
• Overall DC voltage output accuracy is ±2%
• Automatic Pulse Frequency Modulation (PFM) / PWM mode switching
• Low ripple light load PFM mode
• ≥35dB VIN power supply rejection ratio (PSRR) (1kHz to 10kHz)
• Internal soft start, 120µs Start-up time
• Integrated active power-down sequencing (optional)
• Overcurrent and thermal shutdown protection
• Solutions less than 1mm thick
• Total solution size2
