TPS2383BPM
TPS2383BPM
699-TPS2383BPM

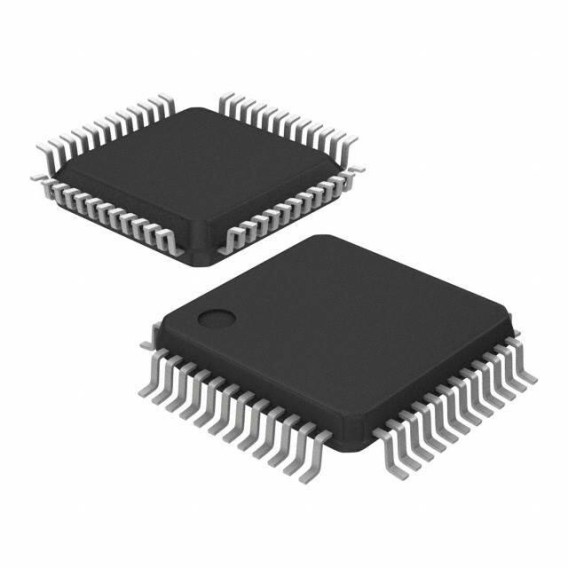

64-LQFP
TPS2383BPM datasheet pdf and PMIC - Power Over Ethernet (PoE) Controllers product details from Rochester Electronics, LLC stock available at HK JDW
In Stock : 999
Share
Please send RFQ, we will respond immediately.
Product Details
Purchasing and Inquiry
TPS2383BPM Overview
It is embedded in the Tray package.The packaging is in 64-LQFP's style.As far as this application is concerned, it is a Controller (PSE) type PoE controller that is being used.Channels are growing strong/weak depending on the category: 8.In order to ensure PoE reliability, it is designed to operate at a temperature of -40°C~85°C.This electrical Po E controller receives its supply voltage from 44V~57V.In a 64 termination, a transmission line is terminated with an impedance-matched power over ethernet controller.During normal operation, this electrical ethernet over power controller will produce 15.4W Watts of power.There is a pin count of 64 on this ethernet over power controller.There is a supply current of 5mA in the system.During reflowing of the electrical ethernet power controller, the peak temperature (Cel) reaches 260 °C.48V should be greater than the supply voltage.When Vsup reaches 57V, the maximum current is supplied for its operation.Its minimal current (Vsup) reaches 44V.
TPS2383BPM Features
Tray package
64 pin count
TPS2383BPM Applications
There are a lot of Rochester Electronics, LLC TPS2383BPM Power Over Ethernet (PoE) Controllers applications.
- Pass-through System
- Commercial Information Displays
- Power over Ethernet
- Higher Power Ethernet Powered Devices
- Security Cameras
- Single-Port PSE End-Point Applications
- Single-Port PSE Power Injectors
- 4PPOE
- Wireless LAN Access Point/WiMAX? Base Station
- VoIP Phones
