TMCM-3110-TMCL Description

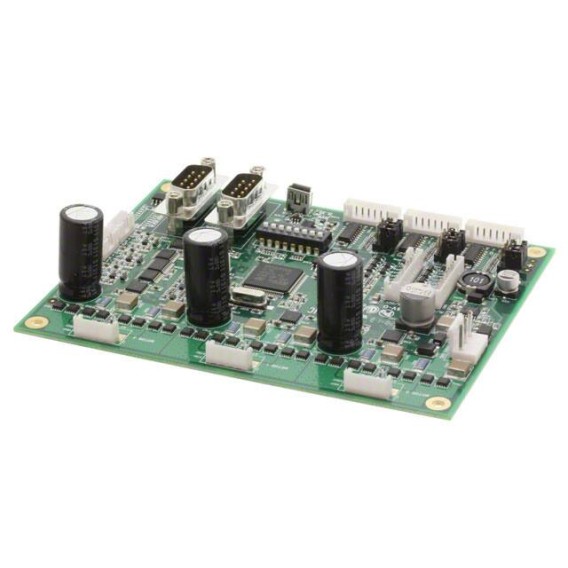

For 2-phase bipolar stepper motors, the TMCM-3110 is a small 3-axes stepper motor controller/driver module. It offers a straightforward handling, is highly integrated, and can be applied to a variety of decentralized applications. The TMCM-3110 supports up to three bipolar stepper motors, each having a maximum coil current of 2.8A RMS and nominal supply voltages of +48V DC.
Each motor has a unique incremental encoder (a/b/n) connector as well as a separate motor, reference/end switch connector. RS485, CAN, or USB interfaces are all capable of supporting communication. For a variety of possible applications, the module provides 8 general-purpose inputs and 8 general-purpose outputs. The cost of power consumption is maintained low because to TRINAMIC's coolStepTM technology's exceptional energy efficiency.
TMCM-3110-TMCL Features
Up to 8 multi-purpose inputs (+24V compatible, incl. 2 dedicated analog inputs)
Up to 8 multi-purpose outputs (Open-drain, incl. 2 outputs for currents up to 1A)
Inputs for 3 incremental encoders (differential and TTL / open-drain)
S/D in for all three axes (as alternative to on-board motion controller)
RS485 communication interface (9pin D-SUB male)
CAN 2.0B communication interface (9pin D-SUB male)
USB 2.0 full-speed (12Mbit/s) communication interface (mini-USB connector)
Up to 256 microsteps per full step
High-efficient operation, low power dissipation
Dynamic current control
Integrated protection
stallGuard2 feature for stall detection
coolStep feature for reduced power consumption and heat dissipation
TMCM-3110-TMCL Applications
Temperature Measurement
Pressure Measurement
Flow Meters
Factory Automation and Process Control
