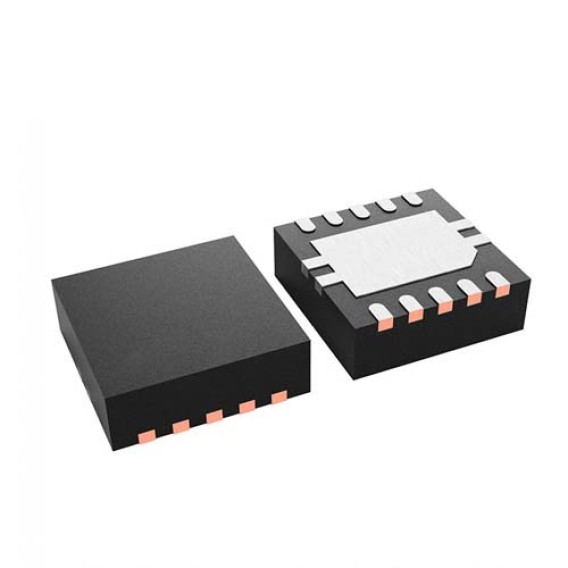

TIOL112DRCR

Overview

The Texas Instruments TIOL112DRCR is a versatile high-speed differential line receiver designed to meet the demands of modern data communication and signal processing applications. Featuring a robust design, excellent performance, and a wide range of industrial applications, this device ensures reliable data reception and signal integrity.

Key Features

High-Speed Performance

The TIOL112DRCR supports data rates of up to 500 Mbps, making it ideal for high-speed communication systems, such as Ethernet, USB, and other industrial networks. Its exceptional bandwidth and low propagation delay enhance system efficiency and reduce latency.

Wide Common-Mode Range

This receiver boasts an extensive common-mode input voltage range, allowing it to handle a variety of signal levels without the need for external components or amplification. It can accommodate common-mode voltages from -7 V to +12 V.

Robust ESD Protection

With ESD protection of up to ±8 kV, the TIOL112DRCR ensures a high level of reliability in harsh industrial environments, protecting your equipment from electrostatic discharge and transient voltage events.

Small Package Size

The compact package size (8-pin SOIC) makes the TIOL112DRCR an excellent choice for space-constrained designs while maintaining ease of integration into existing systems.

Low Power Consumption

Designed with power efficiency in mind, this line receiver operates with a low supply current of only 12 mA, which conserves energy and reduces operating costs.

Extended Temperature Range

The TIOL112DRCR is built to withstand extreme temperature conditions, with an operating temperature range of -40°C to 125°C, ensuring its reliability in various industrial environments.

Applications

• Industrial Automation
• Data Communication Systems
• Instrumentation
• Automotive Electronics
• Telecommunications

Ordering Information

To order the Texas Instruments TIOL112DRCR high-speed differential line receiver and explore additional technical details, please visit the official Texas Instruments website or contact an authorized distributor.

Conclusion

The Texas Instruments TIOL112DRCR is a high-performance differential line receiver, offering robust design, high-speed capabilities, and extensive protection features. Whether you're working on industrial automation, data communication, or instrumentation projects, this device can help you achieve reliable signal reception and data integrity. Invest in the TIOL112DRCR and experience seamless data communication in your applications.
