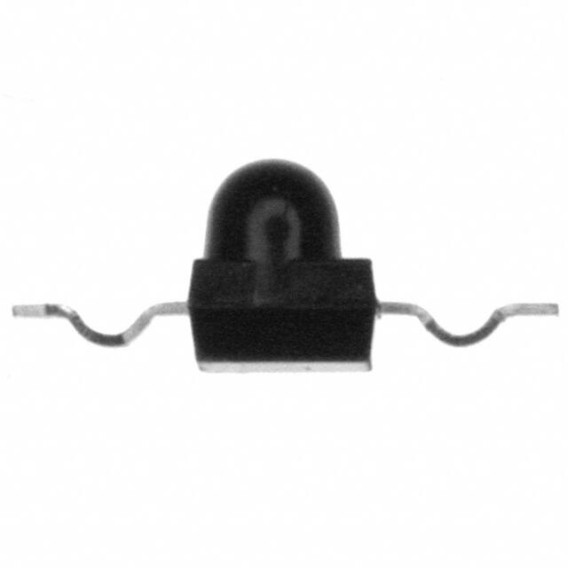

TEMD1030
TEMD1030
879-TEMD1030
SMD/SMT
TEMD1030 datasheet pdf and Optical Sensors - Photodiodes product details from Vishay Semiconductor Opto Division stock available at HK JDW
In Stock : 999
Share
Please send RFQ, we will respond immediately.
Product Details
Purchasing and Inquiry
TEMD1030 Overview
It is important to note that these photodiodes are packaged in Tape & Reel (TR) to prevent damage. A safety package containing the photodiodes is provided for their protection. Under reverse-bias mode, the voltage of the photodiodes should not exceed 60V. A photodiode is equipped with 2 pins. During the operation of a circuit, photodiodes can release 75mW heat. It should be 60V for the reverse anode voltage of the photodiodes. An ideal circuit would allow the photodiodes to release a maximum amount of heat in the form of 75mW heat. With a reverse voltage of 60V, the photodiodes can work properly in the DC circuit. To flow current across a photodiode, a voltage of 1.3V is required. Despite the absence of light, photodiodes make 1nA current.
TEMD1030 Features
Moisture Sensitivity Level (MSL): 3 (168 Hours)
Operating Temperature: -40°C~85°C
Packaging: Tape & Reel (TR)
Diode Type: PIN
Mount: Surface Mount
Spectral Range: 790nm ~ 1050nm
Viewing Angle: 30°
Responsivity @ nm: 0.55 A/W @ 950nm
TEMD1030 Applications
There are a lot of Vishay Semiconductor Opto Division TEMD1030 Photodiodes applications.
- Infrared remote control
- Range finding
- Electronic Equipment
- Optical Switches
- Medical and Industrial
- Emitter Alignment
- YAG laser detection
- Diode Laser Monitoring
- Low Cost Light Monitoring
- Shaft encoders
