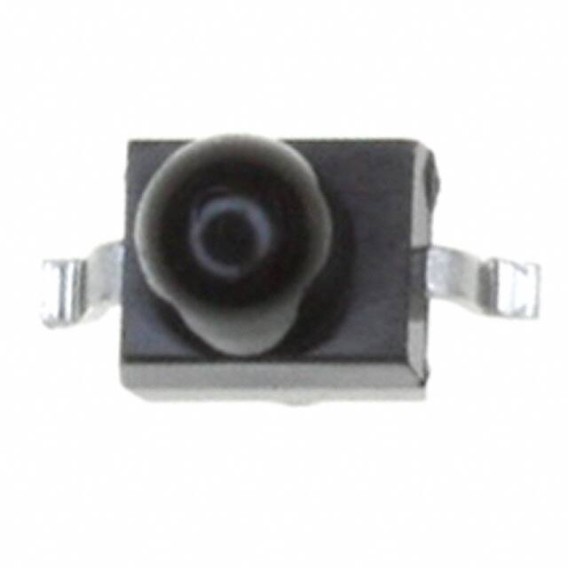

TEMD1020
TEMD1020
879-TEMD1020
SMD/SMT
TEMD1020 datasheet pdf and Optical Sensors - Photodiodes product details from Vishay Semiconductor Opto Division stock available at HK JDW
In Stock : 999
Share
Please send RFQ, we will respond immediately.
Product Details
Purchasing and Inquiry
TEMD1020 Overview
Tape & Reel (TR) is used to protect the photodiodes from damage. To ensure safety, photodiodes are put into SMD/SMT packages. Reverse-bias photodiodes should not be operated above 60V permanently. A photodiode is equipped with 2 pins. In a circuit, the photodiodes may release 75mW heat. It is recommended that the reverse anode voltage on the photodiodes be 60V. In general, the maximum heat generated by photodiodes should be 75mW in a circuit. In the DC circuit, the photodiodes can work properly with the reverse voltage of 60V. Photodiodes are supposed to operate at 1.3V voltage. Photodiodes exhibit 1nA current even in the absence of light input.
TEMD1020 Features
Moisture Sensitivity Level (MSL): 3 (168 Hours)
Operating Temperature: -40°C~85°C
Packaging: Tape & Reel (TR)
Diode Type: PIN
Mount: Surface Mount
Spectral Range: 790nm ~ 1050nm
Viewing Angle: 30°
Responsivity @ nm: 0.55 A/W @ 950nm
TEMD1020 Applications
There are a lot of Vishay Semiconductor Opto Division TEMD1020 Photodiodes applications.
- Currency Validation
- Low Cost Light Monitoring
- Electronic Equipment
- Shaft encoders
- Solar Cells
- High speed photo detectors
- Low Capacitance
- Pure UV-C Monitoring
- LiDAR
- Infrared data transmission
