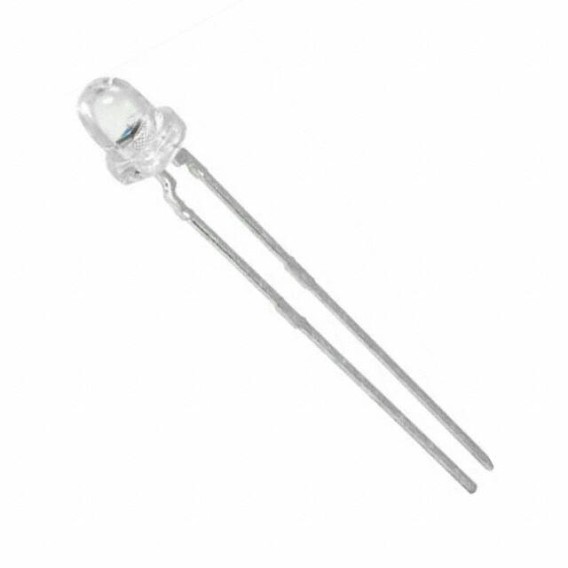

TEFD4300
TEFD4300
879-TEFD4300
Radial
TEFD4300 datasheet pdf and Optical Sensors - Photodiodes product details from Vishay Semiconductor Opto Division stock available at HK JDW
In Stock : 999
Share
Please send RFQ, we will respond immediately.
Product Details
Purchasing and Inquiry
TEFD4300 Overview
To protect the photodiodes, they are packed in the Bulk. In order to ensure safety, the photodiodes are packaged in Radial packages. When operating in reverse bias mode continuously, the photodiodes can withstand 10V voltage. It is important that the reverse-bias voltage of the photodiodes do not exceed 10V continuously. It has 2 pins for the photodiodes. As a result of the photodiodes, a circuit could produce 215mW heat. It is recommended that photodiodes be operated at a temperature of 100°C. However, the minimum operating temperature for the photodiodes should be set to -40°C. It should be 60V for the reverse anode voltage of the photodiodes. It is generally recommended that the maximum heat released by photodiodes should be 215mW in a circuit. A reverse voltage 60V does not affect the photodiodes in the DC circuit. ldeally, a photodiode should have a voltage of 1V to allow current to flow across it. There is 150pA current flowing through a photodiode even in the absence of light input.
TEFD4300 Features
Moisture Sensitivity Level (MSL): 1 (Unlimited)
Operating Temperature: -40°C~100°C
Packaging: Bulk
Diode Type: PIN
Mount: Through Hole
Spectral Range: 350nm ~ 1120nm
Response Time: 100ns
Viewing Angle: 40°
TEFD4300 Applications
There are a lot of Vishay Semiconductor Opto Division TEFD4300 Photodiodes applications.
- YAG laser detection
- Emitter Alignment
- Light Bariers
- Low Capacitance
- Measurement Levelling
- Solar Cells
- Position sensing
- Shaft encoders
- Machine Controls
- Vision Controls
