Home Home Integrated Circuits (ICs) Microprocessors T1024NSE7KNA

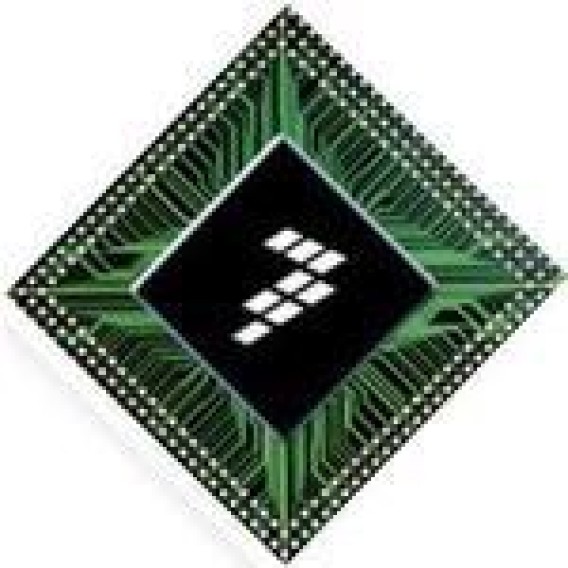

T1024NSE7KNA
  • T1024NSE7KNA
Free Sample More

T1024NSE7KNA

advertisement

Manufacturer No:

T1024NSE7KNA

Manufacturer:

NXP USA Inc.

HK JDW NO:

318-T1024NSE7KNA

Package:

780-FBGA

Datasheet:

T1024NSE7KNA

Description:

0.8mm PowerPC e5500 64-bit Microprocessor QorIQ T1 Series 1V 780-FBGA

Quantity:

Add to RFQ list

In Stock : 999

Share

Please send RFQ, we will respond immediately.

* Contact Name

* Business Email

* Company Name

* Country

* Quantity

Product Details

Purchasing and Inquiry

T1024NSE7KNA Overview


The microprocessor is convenient for international shipping since it is packaged in 780-FBGA. This CPU has 2 Core 64-Bit cores and 2 Core 64-Bit bus widths. It is important to understand the operating temperature around 0°C~105°C TA. QorIQ T1 is its series number. PowerPC e5500 is the processor core of this CPU. It has DDR3L, DDR4 RAM controllers. This microprocessor features interfaces I2C, MMC/SD, PCIe, SPI, UART. A MICROPROCESSOR, RISC represents the uPs/uCs/Peripheral ICs type. Overall, there are 780 terminations. You should be able to turn on and run the embedded microprocessor with a voltage supply of 1V. 64-Bit is its architecture. There is a maximum supply current of 1.03V in this microprocessor. The CPU's external data bus width is 64. CPU microprocessors with a clock frequency of 133.33MHz are used.

T1024NSE7KNA Features


PowerPC e5500 Core
64-Bit Structure

T1024NSE7KNA Applications


There are a lot of NXP USA Inc. T1024NSE7KNA Microprocessor applications.

  • DDC control
  • Routers
  • Telephone sets
  • Coffee machines
  • Christmas lights
  • Nintendo
  • ECG machine
  • Industrial instrumentation devices
  • Copiers
  • Food and beverage
1. Purchase

You can send an inquiry by email, or add the item to the RFQ list and submit it to us.
Tell us the model and quantity you need, our sales staff will reply the price in time.
EmailEmail for receiving inquiries: jindawei@hkjdwchip.com

2. Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

3. RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

4. Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:
FedEx International, 5-7 business days.
The following are some common countries' logistic time.

Purchasing and Inquiry

Payment Method

 The fee is charged according to the rule of PayPal.
East West Bank charge US$30.00 banking fee.
The fee is charged according to the rule of PayPal.
Western Union charge US$0.00 banking fee.

Shipping

 DHL(www.dhl.com)
From $40.00 basic shipping fee depend on zone and country.
UPS(www.ups.com)
From $40.00 basic shipping fee depend on zone and country.
FedEx(www.fedex.com)
From $40.00 basic shipping fee depend on zone and country.
Registered Mail(www.singpost.com)
From $10.00 basic shipping fee depend on different zone and country.

Package

Product
Step1Product
Casing drivepipe
Step2Casing drivepipe
Anti-static bag
Step3Anti-static bag
Packaging boxes
Step4Packaging boxes
Bar-code shipping tag
Step5Bar-code shipping tag

T1024NSE7KNA

technical specifications, attributes, parameters and parts with similar specifications to T1024NSE7KNA.

  • Type
    Parameter
    Select All

  • Factory Lead Time

    14 Weeks

  • Package / Case

    780-FBGA

  • Surface Mount

    YES

  • Operating Temperature

    0°C~105°C TA

  • Published

    2014

  • Series

    QorIQ T1

  • JESD-609 Code

    e1

  • Part Status

    Active

  • Moisture Sensitivity Level (MSL)

    3 (168 Hours)

  • Number of Terminations

    780

  • ECCN Code

    5A002.A.1

  • Terminal Finish

    Tin/Silver/Copper (Sn/Ag/Cu)

  • HTS Code

    8542.31.00.01

  • Technology

    CMOS

  • Terminal Position

    BOTTOM

  • Terminal Form

    BALL

  • Peak Reflow Temperature (Cel)

    250

  • Supply Voltage

    1V

  • Terminal Pitch

    0.8mm

  • Time@Peak Reflow Temperature-Max (s)

    30

  • JESD-30 Code

    S-PBGA-B780

  • Supply Voltage-Max (Vsup)

    1.03V

  • Supply Voltage-Min (Vsup)

    0.97V

  • Speed

    1GHz

  • uPs/uCs/Peripheral ICs Type

    MICROPROCESSOR, RISC

  • Core Processor

    PowerPC e5500

  • Clock Frequency

    133.33MHz

  • Bit Size

    64

  • Address Bus Width

    16

  • Boundary Scan

    YES

  • Low Power Mode

    YES

  • External Data Bus Width

    64

  • Integrated Cache

    YES

  • Ethernet

    GbE (8)

  • Number of Cores/Bus Width

    2 Core 64-Bit

  • Graphics Acceleration

    No

  • RAM Controllers

    DDR3L, DDR4

  • USB

    USB 2.0 + PHY (2)

  • Additional Interfaces

    I2C, MMC/SD, PCIe, SPI, UART

  • Security Features

    Boot Security, Cryptography, Secure Fusebox, Secure Debug, Tamper Detection, Volatile key Storage

  • SATA

    SATA 3Gbps (2)

  • Height Seated (Max)

    2.07mm

  • Length

    23mm

  • RoHS Status

    ROHS3 Compliant
