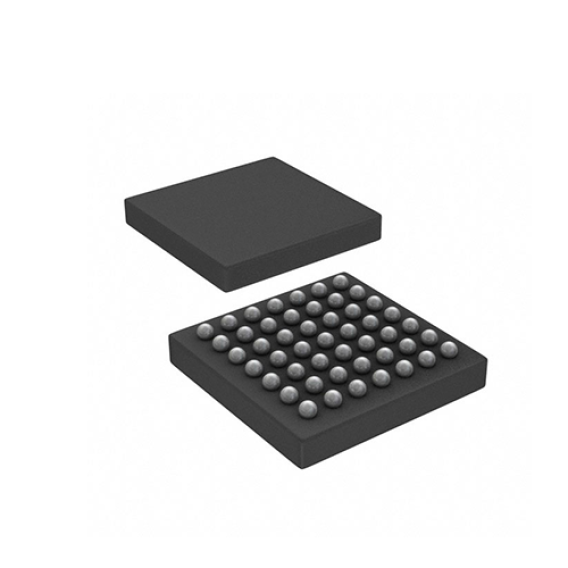

STM32L071CZY6

• Ultra-low-power platform

– 1.65 V to 3.6 V power supply

– -40 to 125 °C temperature range

– 0.29 µA Standby mode (3 wakeup pins)

– 0.43 µA Stop mode (16 wakeup lines)

– 0.86 µA Stop mode + RTC + 20-Kbyte RAM

retention

– Down to 93 µA/MHz in Run mode

– 5 µs wakeup time (from Flash memory)

– 41 µA 12-bit ADC conversion at 10 ksps

• Core: Arm® 32-bit Cortex®-M0+ with MPU

– From 32 kHz up to 32 MHz max.

– 0.95 DMIPS/MHz

• Memories

– Up to 192-Kbyte Flash memory with ECC(2

banks with read-while-write capability)

– 20 -Kbyte RAM

– 6 Kbytes of data EEPROM with ECC

– 20-byte backup register

– Sector protection against R/W operation

• Up to 84 fast I/Os (78 I/Os 5V tolerant)

• Reset and supply management

– Ultra-safe, low-power BOR (brownout reset)

with 5 selectable thresholds

– Ultra-low-power POR/PDR

– Programmable voltage detector (PVD)

• Clock sources

– 1 to 25 MHz crystal oscillator

– 32 kHz oscillator for RTC with calibration

– High speed internal 16 MHz factory-trimmed RC

(+/- 1%)

– Internal low-power 37 kHz RC

– Internal multispeed low-power 65 kHz to

4.2 MHz RC

– PLL for CPU clock

• Pre-programmed bootloader

– USART, I2C, SPI supported

• Development support

– Serial wire debug supported

• Rich Analog peripherals

– 12-bit ADC 1.14 Msps up to 16 channels (down

to 1.65 V)

– 2x ultra-low-power comparators (window mode

and wake up capability, down to 1.65 V)

• 7-channel DMA controller, supporting ADC, SPI,

I2C, USART, Timers

• Up to 10x peripheral communication interfaces

– 4x USART (2 with ISO 7816, IrDA), 1x UART

(low power)

– Up to 6x SPI 16 Mbits/s

– 3x I2C (2 with SMBus/PMBus)

• 11x timers: 2x 16-bit with up to 4 channels, 2x 16-bit

with up to 2 channels, 1x 16-bit ultra-low-power

timer, 1x SysTick, 1x RTC, 2x 16-bit basic, and 2x

watchdogs (independent/window)

• CRC calculation unit, 96-bit unique ID

• All packages are ECOPACK2
