STM32F091CCU6TR
STM32F091CCU6TR
761-STM32F091CCU6TR

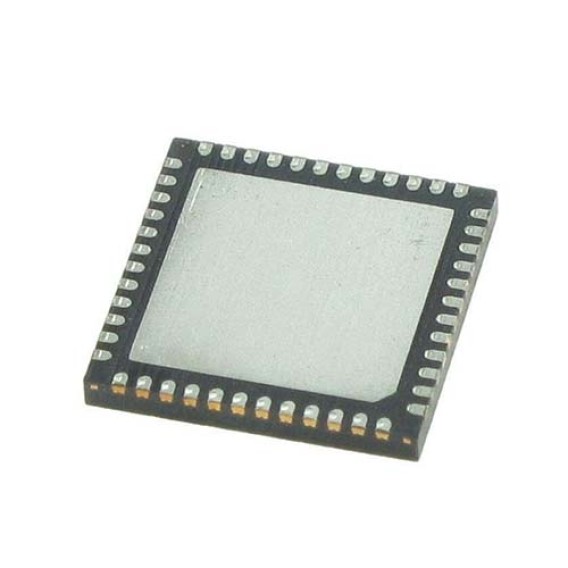

48-UFQFN Exposed Pad
256KB 256K x 8 FLASH ARM? Cortex?-M0 32-Bit Microcontroller STM32F0 Series STM32F09 3.3V 48-UFQFN Exposed Pad
In Stock : 999
Share
Please send RFQ, we will respond immediately.
Product Details
Purchasing and Inquiry
STM32F091CCU6TR Description
The STM32F091xB/XC microcontroller integrates a high-performance ARM Cortex - M0 32-bit RISC core that runs at up to 48 MHz, high-speed embedded memory (up to 256K bytes of flash memory and 32K bytes of SRAM), and a wide range of enhanced peripherals and IMago. The device provides standard communication interfaces (two I2C, two SPI/ and one I2S, one HDMI CEC and up to eight USART), a CAN, a 12-bit ADC, a 12-bit DAC with two channels, seven 16-bit timers, a 32-bit timer and an advanced control PWM timer. The STM32F091xB/XC microcontroller operates in the temperature range of-40 to + 85 °C and from-40 to + 105 °C with a power supply voltage of 2.0 to 3.6V. A comprehensive set of power-saving modes allows the design of low-power applications. The STM32F091xB/XC microcontroller includes seven different packaged devices with pins ranging from 48 pins to 100 pins, and core forms are available on request. Different groups of peripherals are included depending on the selected device.
STM32F091CCU6TR Features
? Core: ARM? 32-bit Cortex?-M0 CPU,
frequency up to 48 MHz
? Memories
– 128 to 256 Kbytes of Flash memory
– 32 Kbytes of SRAM with HW parity
? CRC calculation unit
? Reset and power management
– Digital & I/Os supply: VDD = 2.0 V to 3.6 V
– Analog supply: VDDA = VDD to 3.6 V
– Power-on/Power down reset (POR/PDR)
– Programmable voltage detector (PVD)
– Low power modes: Sleep, Stop, Standby
– VBAT supply for RTC and backup registers
? Clock management
– 4 to 32 MHz crystal oscillator
– 32 kHz oscillator for RTC with calibration
– Internal 8 MHz RC with x6 PLL option
– Internal 40 kHz RC oscillator
– Internal 48 MHz oscillator with automatic
trimming based on ext. synchronization
? Up to 88 fast I/Os
– All mappable on external interrupt vectors
– Up to 69 I/Os with 5V-tolerant capability
and 19 with independent supply VDDIO2
? 12-channel DMA controller
? One 12-bit, 1.0 μs ADC (up to 16 channels)
– Conversion range: 0 to 3.6 V
– Separate analog supply: 2.4 V to 3.6 V
? One 12-bit D/A converter (with 2 channels)
? Two fast low-power analog comparators with
programmable input and output
? Up to 24 capacitive sensing channels for
touchkey, linear and rotary touch sensors
? Calendar RTC with alarm and periodic wakeup
from Stop/Standby
STM32F091CCU6TR Applications
application control
user interfaces
hand-held equipment
A/V receivers
digital TV
PC peripherals
gaming and GPS platforms
industrial applications
