NC7WZ14P6X-L22347

Product Description:

The NC7WZ14P6X-L22347 is a versatile and compact inverter gate designed to provide reliable signal inversion and logic-level translation in a wide range of electronic applications. With its small footprint and robust performance, this inverter gate is an ideal component for achieving signal processing and logic-level conversion tasks.

Features:

High-Speed Performance: The NC7WZ14P6X-L22347 operates at high speeds, making it suitable for applications that require quick signal inversion and logic-level conversion.

Low Power Consumption: Designed for efficiency, this inverter gate consumes minimal power, which is crucial for battery-operated and low-power devices.

Wide Operating Voltage Range: The inverter gate can work with a broad range of input and output voltage levels, ensuring compatibility with various logic families.

Schmitt Trigger Inputs: The Schmitt trigger input design allows the gate to operate reliably even in the presence of noisy or slowly changing input signals.

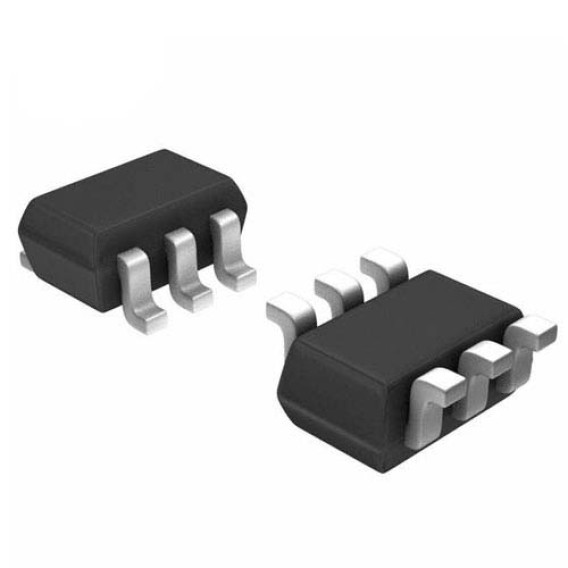

Space-Efficient Package: The NC7WZ14P6X-L22347 is housed in a small SOT-363 package, conserving space on the circuit board and enabling compact designs.

High Noise Immunity: The gate's design includes noise-immune characteristics that help maintain signal integrity in noisy environments.

Applications:

Logic-Level Translation: The NC7WZ14P6X-L22347 is commonly used for converting logic levels between different voltage domains in mixed-signal systems.

Signal Inversion: It serves as an effective tool for signal inversion, ensuring that the output signal is the logical opposite of the input signal.

Digital Communication Interfaces: It can be integrated into digital communication interfaces to manage signal polarity and logic-level compatibility.

Microcontroller and FPGA Interfaces: Microcontroller and FPGA circuits often require logic-level translation to interface with devices that operate at different voltage levels.

Sensor Interfaces: The inverter gate can be used in sensor interface circuits to adjust signal polarity and levels before further processing.

Battery-Powered Devices: Its low power consumption and space-efficient package make it suitable for battery-powered devices with tight power constraints.

In summary, the NC7WZ14P6X-L22347 inverter gate offers high-speed and efficient signal inversion and logic-level translation. Its compact size, low power consumption, wide voltage range, and noise immunity make it suitable for a variety of applications in mixed-signal systems, digital communication interfaces, microcontroller and FPGA interfaces, sensor interfaces, and battery-powered devices. By incorporating this inverter gate, you can effectively manage signal polarity and logic-level compatibility, contributing to the overall functionality and efficiency of your electronic circuits.
