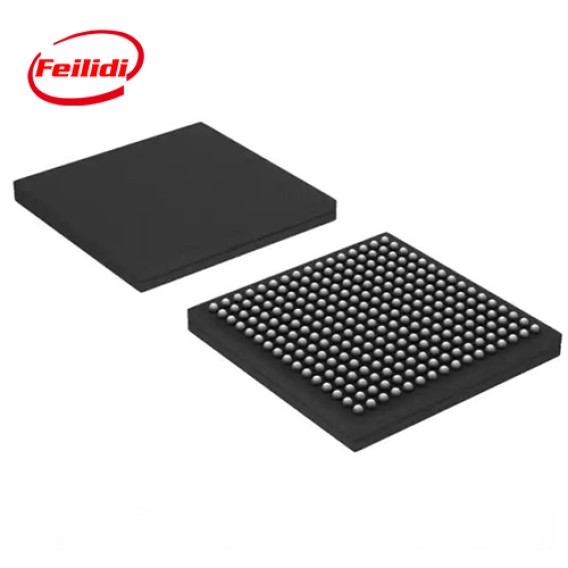

MK70FN1M0VMJ12

The Kinetis K70 Series MCU MK70FN1M0VMJ12provides optimized low-power and mixed-signal analog integration for applications such as industrial control panels, navigation displays, point-of-sale terminals and medical monitoring devices.

MK70FN1M0VMJ12  Features

Operating Characteristics

– Voltage range: 1.71 to 3.6 V

– Flash write voltage range: 1.71 to 3.6 V

– Temperature range (ambient): -40 to 105°C

Performance

– Up to 120 MHz Arm? Cortex?-M4 core with DSP

instructions delivering 1.25 Dhrystone MIPS per MHz

 Memories and memory interfaces

– Up to 1024 KB program flash memory on nonFlexMemory devices

– Up to 512 KB program flash memory on

FlexMemory devices

– Up to 512 KB FlexNVM on FlexMemory devices

– 16 KB FlexRAM on FlexMemory devices

– Up to 128 KB RAM

– Serial programming interface (EzPort)

– FlexBus external bus interface

– DDR controller interface

– NAND flash controller interface

Clocks

– 3 to 32 MHz crystal oscillator

– 32 kHz crystal oscillator

– Multi-purpose clock generator

System peripherals

– Multiple low-power modes to provide power

optimization based on application requirements

– Memory protection unit with multi-master

protection

– 32-channel DMA controller, supporting up to 128

request sources

– External watchdog monitor

– Software watchdog

– Low-leakage wakeup unit

MK70FN1M0VMJ12  Applications

Automotive

Heating Ventilation, and Air Conditioning (HVAC)

Communication Infrastructure

Network Security

Industrial

3-Phase AC Induction Motor

 Air Conditioning (AC)

Brushless DC Motor (BLDC) Control

Electricity Grid and Distribution

Electricity Meter

Energy Gateway

Gas Meter

Heat Metering
