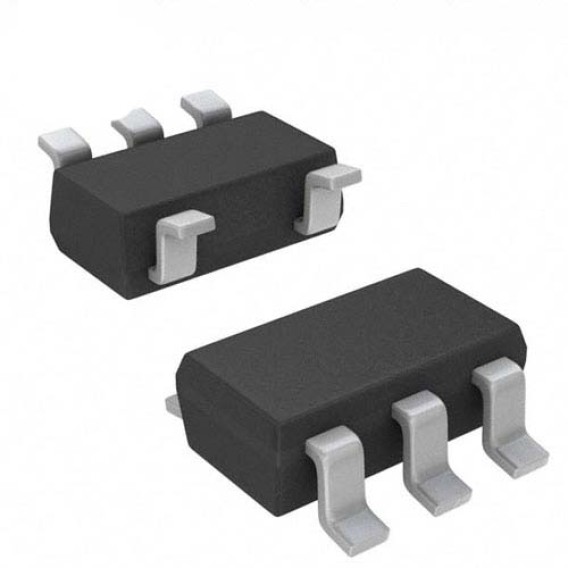

Product Description: MCP1416T-E/OT
The MCP1416T-E/OT is a single-output, non-inverting, high-speed MOSFET driver manufactured by Microchip Technology. It is part of the MCP141x family of MOSFET drivers, designed to provide efficient and reliable switching control for power MOSFETs and IGBTs (Insulated Gate Bipolar Transistors). The MCP1416T-E/OT comes in a compact SOT-23 package, making it suitable for space-constrained applications.
Description:
The MCP1416T-E/OT features a non-inverting high-speed driver capable of driving high-current MOSFETs and IGBTs efficiently. It is designed to provide fast switching and high output current, ensuring precise control of power switches in various applications. The driver can handle a wide range of input voltage levels, making it compatible with different control signals.
Features:
High-Speed MOSFET Driver: The MCP1416T-E/OT is a high-speed MOSFET driver capable of switching power MOSFETs and IGBTs efficiently.
Non-Inverting Output: It provides a non-inverting output, where the output follows the input signal.
High Output Current: The driver can deliver a high output current to efficiently drive power MOSFETs and IGBTs.
Wide Input Voltage Compatibility: It can accept a wide range of input voltage levels, making it suitable for various control signal sources.
Under-Voltage Lockout (UVLO): The MCP1416T-E/OT features built-in under-voltage lockout, ensuring proper operation under low voltage conditions.
Shoot-Through Protection: It includes shoot-through protection to prevent both the high-side and low-side MOSFETs from being on simultaneously, reducing the likelihood of shoot-through currents.
Thermal Shutdown: The driver is equipped with thermal shutdown protection to prevent damage due to excessive temperature.
Low Propagation Delay: The MCP1416T-E/OT has a low propagation delay, ensuring fast switching times.
Applications:
The MCP1416T-E/OT MOSFET driver is commonly used in applications that require efficient and fast switching control of power MOSFETs and IGBTs. Some typical applications include:
Power Supplies: The driver is utilized in power supply circuits to control high-current MOSFETs for power regulation and switching.
Motor Control: It is used in motor control circuits to drive power MOSFETs or IGBTs in brushless DC (BLDC) motors, servo motors, and motor drivers.
Switching Converters: The MCP1416T-E/OT is employed in switching converter circuits, such as buck converters, boost converters, and flyback converters, to control the switching of power switches.
Lighting Systems: It is used in LED driver circuits and other lighting systems to efficiently control power MOSFETs or IGBTs for dimming and switching.
DC-DC Converters: The driver is utilized in DC-DC converter circuits to control synchronous rectification and power switching.
Power Inverters: It is used in power inverter circuits to control the switching of power devices in solar inverters, UPS systems, and other inverter applications.
Industrial Control Systems: The MCP1416T-E/OT is employed in various industrial control systems to drive power switches in motor drives, actuators, and control valves.
In summary, the MCP1416T-E/OT is a single-output, non-inverting, high-speed MOSFET driver designed to provide efficient and reliable switching control for power MOSFETs and IGBTs. Its high output current, wide input voltage compatibility, under-voltage lockout, shoot-through protection, thermal shutdown, and low propagation delay make it suitable for a wide range of applications, including power supplies, motor control, switching converters, lighting systems, DC-DC converters, power inverters, and industrial control systems. Its compact SOT-23 package ensures easy integration into space-constrained designs, and its performance characteristics make it a dependable choice for precise and efficient power switch control.
