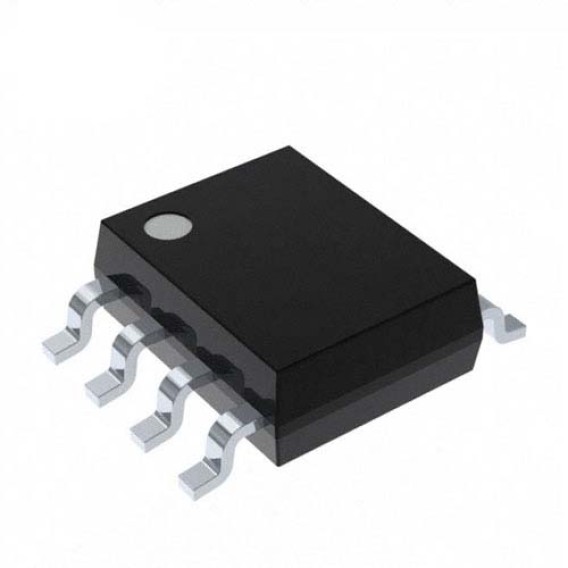

MAX3057ASA+T
MAX3057ASA+T
503-MAX3057ASA+T
8-SOIC (0.154, 3.90mm Width)
8 Terminations8 Pin MAX3057 Receivers1/1 Drivers/Receivers1 Functions
In Stock : 3373
Share
Please send RFQ, we will respond immediately.
Product Details
Purchasing and Inquiry
Product Description: MAX3057ASA+T
The MAX3057ASA+T is a robust, high-speed, and low-power transceiver designed to facilitate reliable communication in harsh industrial environments. This device offers a reliable solution for applications that require noise-immune and high-speed data transmission over a single twisted-pair cable or a differential transmission medium.
Description:
The MAX3057ASA+T comes in a small 8-pin SOIC package, making it suitable for space-constrained PCB designs. It is specifically designed for differential data transmission, enabling communication in noisy environments without compromising signal integrity.
Features:
Robust Transceiver: The MAX3057ASA+T is a dedicated differential line transceiver, providing a balanced and noise-immune communication channel.
Low-Power Operation: It operates with low power consumption, making it suitable for power-sensitive applications and battery-operated devices.
High-Speed Communication: The device supports high-speed data transmission, making it ideal for applications requiring fast and reliable communication.
Wide Supply Voltage Range: It can operate over a wide supply voltage range, allowing for flexible power supply configurations.
Enhanced ESD Protection: The device is equipped with built-in enhanced electrostatic discharge (ESD) protection, enhancing its robustness and reliability in various environments.
Half-Duplex Communication: The MAX3057ASA+T supports half-duplex communication, where data transmission can occur in both directions, but not simultaneously.
Thermal Shutdown: The device features thermal shutdown protection, preventing damage due to excessive temperature.
Applications:
The MAX3057ASA+T is suitable for a variety of applications that require reliable and noise-immune differential data transmission. Some typical applications include:
Industrial Automation: It can be used in industrial automation systems for reliable and noise-resistant communication between sensors, actuators, and controllers.
RS-485/RS-422 Communication: The device is commonly used in RS-485/RS-422 communication networks to enable long-distance data transmission in noisy industrial environments.
Building Automation: It finds applications in building automation systems for communication between control panels, sensors, and other devices.
Motor Control: The MAX3057ASA+T is used in motor control systems to facilitate communication between the motor driver and the control unit.
Process Control: It is employed in process control systems for the reliable transmission of data between various components.
Home Automation: The device is suitable for home automation applications that require robust and noise-immune communication.
Communication Interfaces: It can be integrated into communication interfaces for various devices and systems.
In summary, the MAX3057ASA+T is a robust, high-speed, and low-power transceiver designed to provide reliable communication over a single twisted-pair cable or a differential transmission medium. Its features, including low power consumption, high-speed communication, enhanced ESD protection, and thermal shutdown, make it suitable for various applications in industrial automation, building automation, motor control, process control, and home automation. Its robust and noise-immune design ensures reliable data transmission in challenging environments, making it a reliable choice for applications requiring differential data communication.
