LMZ30606RKGT
LMZ30606RKGT
feilidi-LMZ30606RKGT

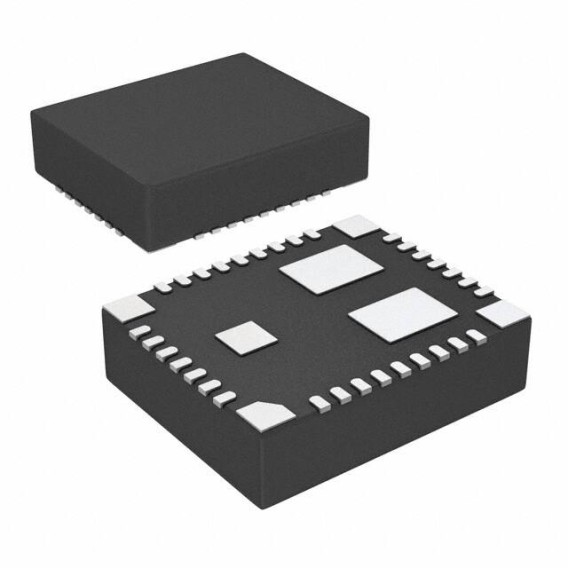

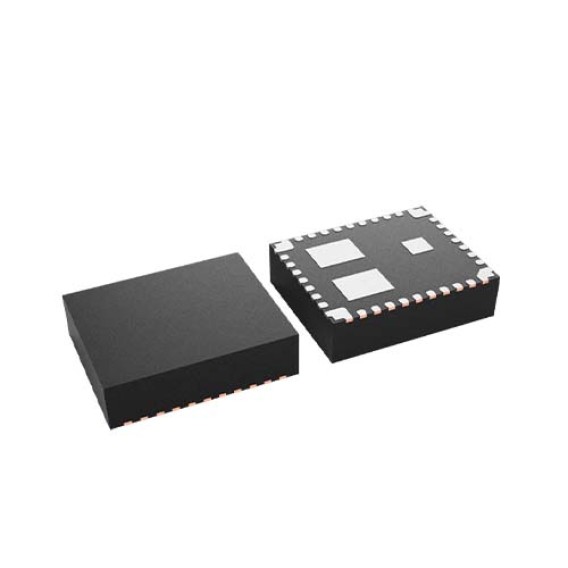

39-BQFN Module
TEXAS INSTRUMENTS LMZ30606RKGT IC, POWER MODULE, PWR GOOD, QFN-39
Unit Price: $161.5971
Ext Price: $161.5971
In Stock : 2000
Share
Qty
Unit Price
Ext Price
-
10
$152.45
$1,524.50
-
100
$143.82
$14,382.08
-
500
$135.68
$67,840.00
-
1000
$128.00
$128,000.00
Not the price you want? Send RFQ Now and we'll contact you ASAP.
Product Details
Purchasing and Inquiry
Description for the LMZ30606
The LMZ30606 SIMPLE SWITCHER® power module is an easy-to-use integrated power solution that combines a 6-A DC/DC converter with power MOSFETs, a shielded inductor, and passives into a low profile, QFN package. This total power solution requires as few as 3 external components and eliminates the loop compensation and magnetics part selection process.
The 9×11×2.8 mm QFN package is easy to solder onto a printed circuit board and allows a compact point-of-load design with greater than 90% efficiency and excellent power dissipation with a thermal impedance of 12°C/W junction to ambient. The device delivers the full 6-A rated output current at 85°C ambient temperature without airflow.
The LMZ30606 offers the flexibility and the feature-set of a discrete point-of-load design and is ideal for powering performance DSPs and FPGAs. Advanced packaging technology afford a robust and reliable power solution compatible with standard QFN mounting and testing techniques.
Features for the LMZ30606
- Complete Integrated Power Solution Allows
Small Footprint, Low-Profile Design - 9mm x 11mm x 2.8mm package
- Pin Compatible with LMZ30602 & LMZ30604 - Efficiencies Up To 96%
- Wide-Output Voltage Adjust
0.8 V to 3.6 V, with ±1% Reference Accuracy - Adjustable Switching Frequency
(500 kHz to 2 MHz) - Synchronizes to an External Clock
- Adjustable Slow-Start
- Output Voltage Sequencing / Tracking
- Power Good Output
- Programmable Undervoltage Lockout (UVLO)
- Output Overcurrent Protection
- Over Temperature Protection
- Operating Temperature Range: –40°C to 85°C
- Enhanced Thermal Performance: 12°C/W
- Meets EN55022 Class B Emissions
- Integrated Shielded Inductor - Create a Custom Design Using the LMZ30606 With the WEBENCH® Power Designer
