LMZ20501SILT
LMZ20501SILT
feilidi-LMZ20501SILT
8-SMD Module
Non-Isolated DC/DC Converters 1A SWITCHER Nano Mod 5.5V Max Input V
Unit Price: $13.0704
Ext Price: $13.0704
In Stock : 100
Share
Qty
Unit Price
Ext Price
-
10
$12.33
$123.31
-
100
$11.63
$1,163.26
-
500
$10.97
$5,487.10
-
1000
$10.35
$10,353.00
Not the price you want? Send RFQ Now and we'll contact you ASAP.
Product Details
Purchasing and Inquiry
Description for the LMZ20501

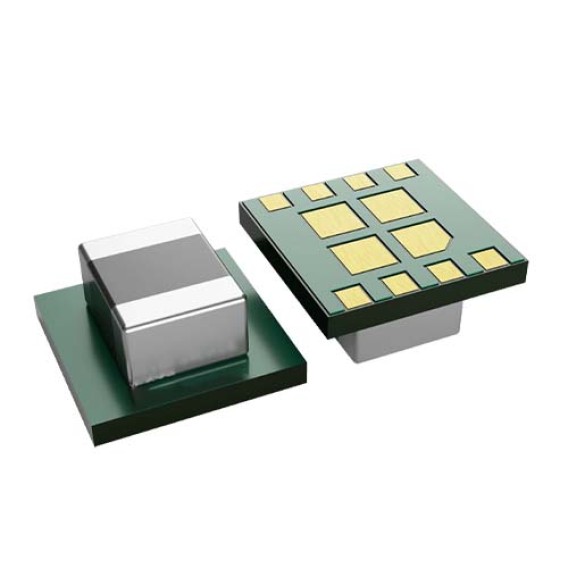

The LMZ20501 nano module regulator is an easy-to-use synchronous step-down DC/DC converter capable of driving up to 1 A of load from an input of up to 5.5 V, with exceptional efficiency and output accuracy in a very small solution size. The innovative package contains the regulator and inductor in a small 3.5 mm × 3.5 mm × 1.75 mm volume, thus saving board space and eliminating the time and expense of inductor selection. The LMZ20501 requires only five external components and has a pin-out designed for simple, optimum PCB layout. The device provides for an easy to use complete design with a minimum number of external components and the TI WEBENCH design tool. TI’s WEBENCH tool includes features such as external component calculation, electrical simulation, and WebTherm. For soldering information, see SNOA401.
Features for the LMZ20501
- Integrated inductor
- Miniature 3.5-mm × 3.5-mm × 1.75-mm package
- 1-A maximum load current
- Input voltage range of 2.7 V to 5.5 V
- Adjustable output voltage range of 0.8 V to 3.6 V
- ± 1% feedback tolerance over temperature
- 2.4-µA (maximum) quiescent current in shutdown
- 3-MHz fixed PWM switching frequency
- –40°C to 125°C junction temperature range
- Power-good flag function
- Pin-selectable switching modes
- Internal compensation and soft start
- Current limit, thermal shutdown, and UVLO protection
- Create a custom design using the LMZ20501 with WEBENCH Power Designer
