L1SS400T1G

Description:

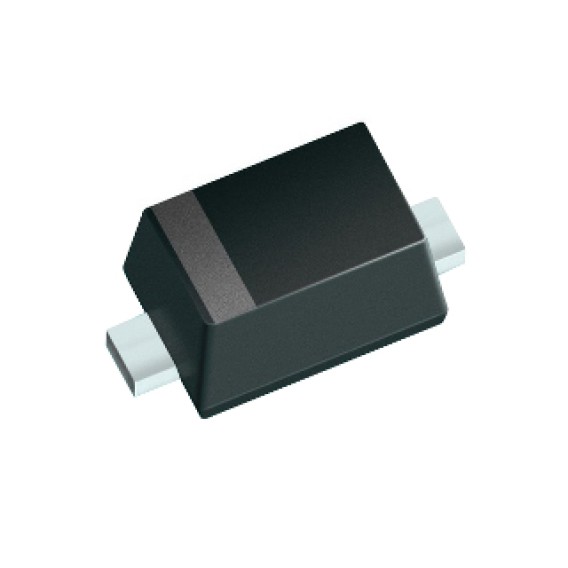

The L1SS400T1G is a small, high-speed, surface mount switching diode produced by LRC. It is designed for high-frequency, high-speed switching and space-constrained electronic applications and has excellent electrical performance and reliability.

Main Features:

Small package: SOD523 (SC-79) package is adopted, which is suitable for high-density integration.

High-speed switch: With extremely short reverse recovery time (4ns), it is suitable for high-frequency and fast switching applications.

Low forward voltage drop: Under forward current, the voltage drop is small, which helps to reduce energy loss.

High reverse withstand voltage: The maximum reverse withstand voltage can reach 90V, ensuring stable operation under reverse voltage.

Reliability and durability: After careful design and manufacturing, it has high reliability and durability to meet the needs of various applications.

Applications:

High-frequency circuits:

Due to its extremely short reverse recovery time (4ns), the L1SS400T1G is very suitable for fast switching operations in high-frequency circuits, ensuring stable transmission and processing of signals at high frequencies.

Signal processing and amplification circuits:

In electronic devices that require high-speed signal processing, such as communication equipment, computers and peripherals, the L1SS400T1G can be used as signal rectification, detection or as a high-speed switching element to improve circuit performance and response speed.

Rectification and clamping circuits:

In some applications, the L1SS400T1G can be used as a rectifier diode to convert AC signals into DC signals, or as a clamping diode to limit the voltage at a certain point in the circuit to not exceed a preset value.
