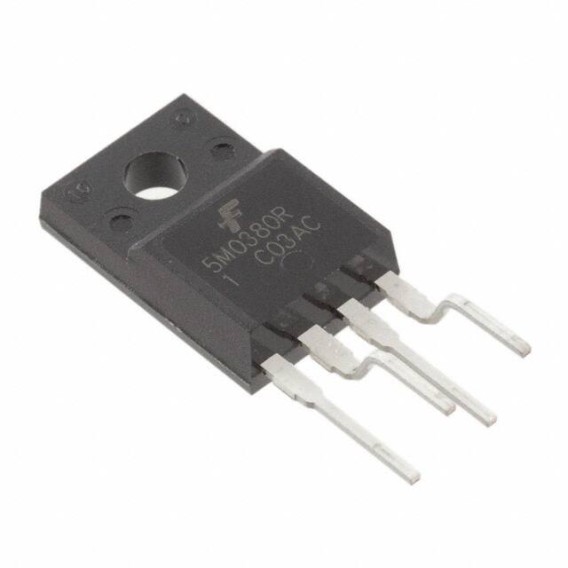

KA5M0380RYDTU
KA5M0380RYDTU
598-KA5M0380RYDTU
TO-220-4 Full Pack (Formed Leads)
4 Terminations9V~30V 4 Pin KA5M0380 AC to DC power converterFPS? Series 1 Outputs67kHz
In Stock : 999
Share
Please send RFQ, we will respond immediately.








Product Details
Purchasing and Inquiry
KA5M0380RYDTU Overview
TO-220-4 Full Pack (Formed Leads) is the package in which the ac to dc converter is embedded.In Tube AC/DC power converter, it is available.It is mounted in the way of Through Hole .The ac dc converter needs to be operated at -40°C~85°C TA °C in order to perform.In this AC DC converter, the analog IC type is SWITCHING REGULATOR .As soon as the switching frequency reaches 67kHz , the circuit is closed.Supply voltage (Vcc/Vdd) does not need to exceed 9V~30V .As a result, it has had 4 terminations.There are 4 pins on the ac/dc converter.It are possible to mount thare ac dc converters by Through Hole .It belongs to the family of FPS? manufacturers.The KA5M0380 family can be used to search for similar acdc converters.There are 1 outputs to be run.Currently, the output current is set to 3A .This AC/DC converter produces a voltage of 5V as its output.When the supply voltage is 30V , the interface IC may conduct.There is a maximum supply current of 12mA that AC to DC converter can handle.The resistance of this power AC DC is 5Ohm .AC to DC power converters with a max output power of 18W may be used.
KA5M0380RYDTU Features
Packaged with TO-220-4 Full Pack (Formed Leads)
Switching Frequency at 67kHz
With 4 pins
Output Current at 3A
Operating Supply Voltage at the range of 30V
Resistance : 5Ohm
KA5M0380RYDTU Applications
There are a lot of ON Semiconductor KA5M0380RYDTU AC DC Converters applications.
- Linear Adapter Replacements
- Air Conditioning
- Off--line Battery Charger
- Utility meters
- Adapter/Charger for Cordless Phones
- AC--DC Adapter
- Standby power supplies for IR
- AC?DC USB chargers for Cell Phones
- Switching AC-DC Charger
- Automotive Infotainment
