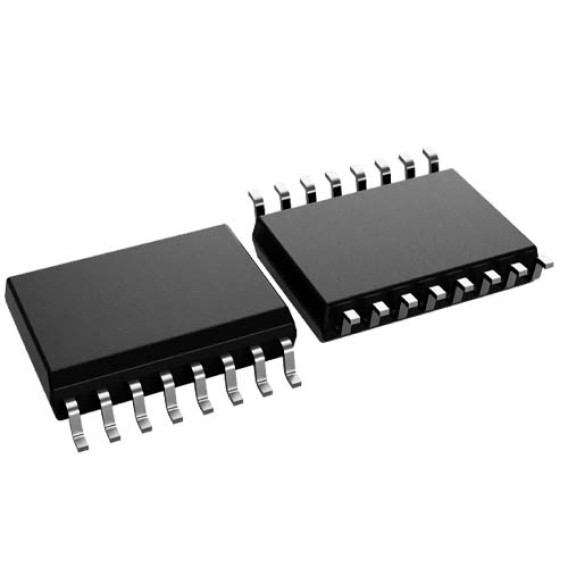

ISO3082DWR
ISO3082DWR
feilidi-ISO3082DWR
16-SOIC (0.295, 7.50mm Width)
Single Transmitter/Receiver RS-485 16-Pin SOIC T/R
In Stock : 1999
Share
Please send RFQ, we will respond immediately.
Product Details
Purchasing and Inquiry
1 Features
1• Meets or Exceeds TIA/EIA RS-485 Requirements
• Signaling Rates up to 20 Mbps
• 1/8 Unit Load – Up to 256 Nodes on a Bus
• Thermal Shutdown Protection
• Low Bus Capacitance – 16 pF (Typical)
• 50 kV/μs Typical Transient Immunity
• Fail-safe Receiver for Bus Open, Short, Idle
• 3.3-V Inputs are 5-V Tolerant
• Bus-Pin ESD Protection
– 12-kV HBM Between Bus Pins and GND2
– 6-kV HBM Between Bus Pins and GND1
• Safety-Related Certifications:
– 4000-VPK Basic Insulation, 560 VPK VIORM per
DIN V VDE V 0884-10 (VDE V 0884-10):
2006-12 and DIN EN 61010-1
– 2500 VRMS Isolation per UL 1577
– 4000 VPK Isolation per CSA Component
Acceptance Notice 5A and IEC 60950-1
2 Applications
• Security Systems
• Chemical Production
• Factory Automation
• Motor and Motion Control
• HVAC and Building Automation Networks
• Networked Security Stations
3 Description
The ISO3080 and ISO3086 devices are isolated fullduplex differential line drivers and receivers while the
ISO3082 and ISO3088 devices are isolated halfduplex differential line transceivers for TIA/EIA
485/422 applications.
These devices are ideal for long transmission lines
because the ground loop is broken to allow for a
much larger common-mode voltage range. The
symmetrical isolation barrier of the device is tested to
provide 2500 VRMS of isolation for 60 s per UL 1577
between the bus-line transceiver and the logic-level
interface.
Any cabled I/O can be subjected to electrical noise
transients from various sources. These noise
transients can cause damage to the transceiver
and/or nearby sensitive circuitry if they are of
sufficient magnitude and duration. These isolated
devices can significantly increase protection and
reduce the risk of damage to expensive control
circuits.
The ISO3080, ISO3082, ISO3086, and ISO3088
device are qualified for use from –40°C to +85°C.
