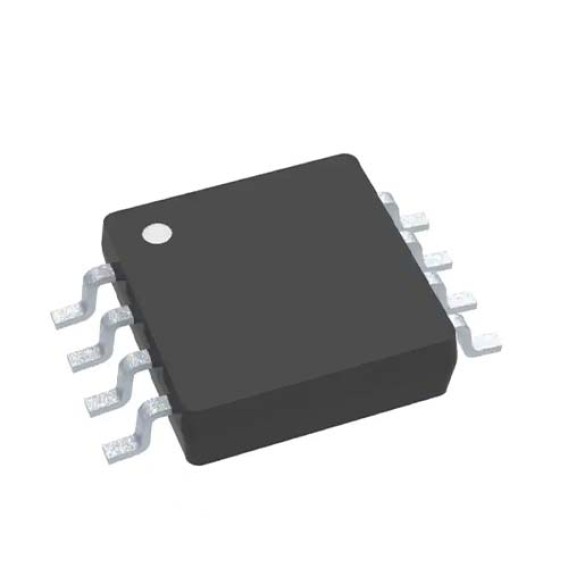

INA826AIDGKR
INA826AIDGKR
feilidi-INA826AIDGKR
8-TSSOP, 8-MSOP (0.118, 3.00mm Width)
1 Channels 16mA per Channel 35nA 84 dB Instrumentational OP Amps 0.065μA 2.7V~36V ±1.35V~18V INA826 8 Pins 8-TSSOP, 8-MSOP (0.118, 3.00mm Width)
Unit Price: $25.2495
Ext Price: $25.2495
In Stock : 999
Share
Qty
Unit Price
Ext Price
-
10
$23.82
$238.20
-
100
$22.47
$2,247.20
-
500
$21.20
$10,600.00
-
1000
$20.00
$20,000.00
Not the price you want? Send RFQ Now and we'll contact you ASAP.
Product Details
Purchasing and Inquiry
INA826AIDGKR Description
The INA826AIDGKR is a low-cost instrumentation amplifier that operates over a large single-supply or dual-supply range and consumes very little power. Any gain between 1 and 1000 can be set with a single external resistor. Because of the low gain drift of only 35 ppm/°C, the INA826AIDGKR has exceptional temperature stability, even at G > 1. (maximum).
Above frequencies up to 5 kHz, the INA826AIDGKR is tuned to give an excellent common-mode rejection ratio of over 100 dB (G = 10). At G = 1, the common-mode rejection ratio surpasses 84 dB across the whole input common-mode range, from negative to positive supply voltages of 1 V. The INA826AIDGKR is a fantastic choice for low-voltage operation from a 3-V single source, as well as dual supplies up to 18 V, thanks to its rail-to-rail output.
INA826AIDGKR Features
Power-supply rejection: 100 dB, min (G = 1)
Low offset voltage: 150 μV, max
Gain drift: 1 ppm/°C (G = 1), 35 ppm/°C (G > 1)
Noise: 18 nV/√Hz, G ≥ 100
Bandwidth: 1 MHz (G = 1), 60 kHz (G = 100)
Inputs protected up to ±40 V
Rail-to-rail output
Supply current: 200 μA
INA826AIDGKR Applications
Analog input module
Flow transmitter
Battery test
LCD test
Electrocardiogram (ECG)
Surgical equipment
Process analytics (pH, gas, concentration, force, and humidity)
Circuit breaker (ACB, MCCB, VCB)
