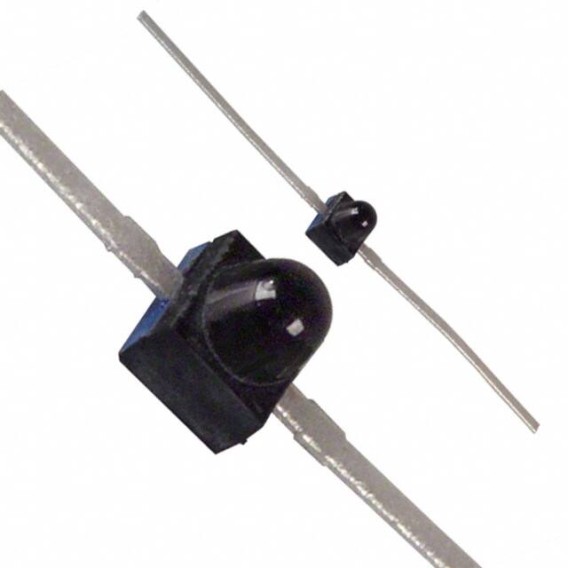

HSDL-5420
  • HSDL-5420
Free Sample More

HSDL-5420

advertisement

Manufacturer No:

HSDL-5420

Manufacturer:

Lite-On

HK JDW NO:

456-HSDL-5420

Package:

2-SMD, Flat Lead

Datasheet:

HSDL-5420

Description:

HSDL-5420 datasheet pdf and Optical Sensors - Photodiodes product details from Lite-On Inc. stock available at HK JDW

Quantity:

Add to RFQ list

In Stock : 999

Share

Please send RFQ, we will respond immediately.

* Contact Name

* Business Email

* Company Name

* Country

* Quantity

Product Details

Purchasing and Inquiry

HSDL-5420 Overview


To prevent damage to these photodiodes, they are packaged in Bulk. In order to ensure safety, the photodiodes are packaged in 2-SMD, Flat Lead packages. A reverse-bias photodiode shouldn't exceed 40V continuously in reverse-bias mode. There are 2 pins on the photodiodes. During the operation of a circuit, photodiodes can release 150mW heat. Photodiodes should have a reverse anode voltage of 40V. Current should flow across a photodiode at 800mV voltage. The photodiodes were capable of supplying 40V voltage when operating in reverse-bias mode. In the absence of light input, the photodiode exhibits a current of 1nA.

HSDL-5420 Features


Moisture Sensitivity Level (MSL): 2A (4 Weeks)
Operating Temperature: -40°C~85°C
Packaging: Bulk
Diode Type: PIN
Mount: Surface Mount, Through Hole
Spectral Range: 770nm ~ 1000nm
Viewing Angle: 56°

HSDL-5420 Applications


There are a lot of Lite-On Inc. HSDL-5420 Photodiodes applications.

  • Range finding
  • Pulse Oximetry
  • Infrared data transmission
  • Photo interrupters
  • Optical Switches
  • YAG laser detection
  • Vision Controls
  • Low Cost Light Monitoring
  • Light Bariers
  • Machine Controls
