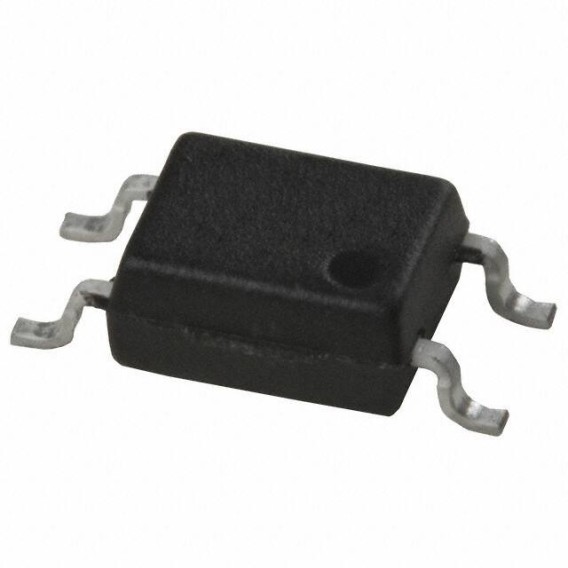

HCPL-181-000E
HCPL-181-000E
107-HCPL-181-000E
4-SOIC (0.209, 5.30mm Width)
OPTOISO 3.75KV TRANSISTOR 4SOIC
In Stock : 999
Share
Please send RFQ, we will respond immediately.
Product Details
Purchasing and Inquiry
Description
The HCPL-181 contains a light emitting diode optically coupled to a phototransistor. It is packaged in a 4-pin minifl at SMD package with a 2.0 mm profi le.
The small dimension of this product allows signifi cant space saving. The package volume is 30% smaller than that of conventional DIP type.
Input-output isolation voltage is 3750 Vrms. Response time, tr, is typically 4 μs and minimum CTR is 50% at input current of 5 mA.
Features
Current Transfer Ratio (CTR: min. 50% at IF = 5 mA, VCE = 5 V)
High input-output isolation voltage (Viso = 3750 Vrms)
High collector-emitter voltage (VCEO = 80 V)
Response time (tr: typ., 4 μs at VCE = 2 V, IC = 2 mA, RL = 100 Ω)
Mini-fl at package (2.0 mm profi le) in tape and reel package
UL approved
CSA approved
IEC/EN/DIN EN 60747-5-2 approved
Options available: – IEC/EN/DIN EN 60747-5-2 approvals (060)
Applications
I/O interfaces for computers
System appliances, measuring instruments
Signal transmission between circuits of diff erent potentials and impedances
Feedback circuit in power supply
You can send an inquiry by email, or add the item to the RFQ list and submit it to us.
Tell us the model and quantity you need, our sales staff will reply the price in time.
Email for receiving inquiries: jindawei@hkjdwchip.com
For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.
3. RFQ (Request for Quotations)It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.
1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.
Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
Delivery TimeOnce the goods are shipped, estimated delivery time depends on the shipping methods you chose:
FedEx International, 5-7 business days.
The following are some common countries' logistic time.
Payment Method
| The fee is charged according to the rule of PayPal. | |
| East West Bank charge US$30.00 banking fee. | |
| The fee is charged according to the rule of PayPal. | |
| Western Union charge US$0.00 banking fee. |
Shipping
| DHL(www.dhl.com) From $40.00 basic shipping fee depend on zone and country. |
|
| UPS(www.ups.com) From $40.00 basic shipping fee depend on zone and country. |
|
| FedEx(www.fedex.com) From $40.00 basic shipping fee depend on zone and country. |
|
| Registered Mail(www.singpost.com) From $10.00 basic shipping fee depend on different zone and country. |
Package
 |
 |
 |
 |
 |
HCPL-181-000E
technical specifications, attributes, parameters and parts with similar specifications to HCPL-181-000E.
Hot Sales in Thermal
Parts with Similar Specs
The three parts on the right have similar specifications to Aavid.
-
ImagePart NameManufacturerHK JDW NOPackageStockDataSheet:Compare:
-
Toshiba Semiconductor and Storage4669-TLP781(LF6,F)4-SMD, Gull Wing2-3 DaysAdd Compare -
Isocom Components 2004 LTD403-CNY17F-2XSM6-SMD, Gull Wing2-3 Days-Add Compare -
Broadcom Limited107-HCPL-2730-020E8-DIP (0.300, 7.62mm)2-3 Days-Add Compare -
Sharp Microelectronics733-PC123Y22FZ1B-2-3 DaysAdd Compare
-

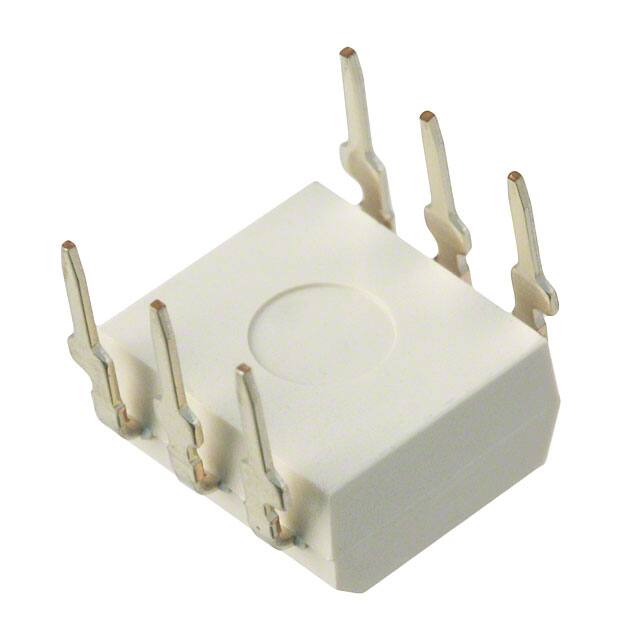

Toshiba Semiconductor and Storage4669-TLP512(F)6-DIP (0.300, 7.62mm)2-3 DaysAdd Compare
