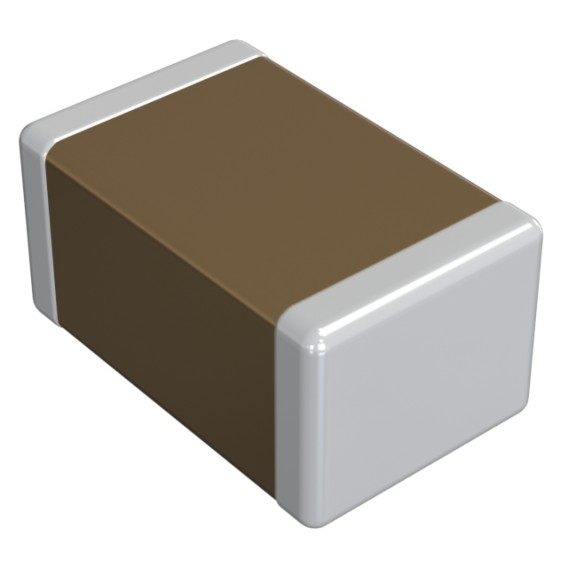

GRM32ER71A476KE15L

Description:

GRM32ER71A476KE15L is a high-performance gradient ceramic capacitor (MLCC) manufactured by Murata. Its main parameters include: capacity of 47μF, voltage rating of 10V, tolerance of ±10%, electrical performance of X7R, and working medium temperature The range is -55℃ to +125℃, the package form is 1210 (3225 system), and uses surface mount technology (SMT). This electronic component is widely used in power simulation, signal simulation, connector, bypass and oscillation circuits of various electronic equipment and communication equipment. Its perfect process technology, stable performance and strict quality control have become a new generation of electronic components. The preferred component for smart devices.

Main Features:

High Capacity: This capacitor has a capacity of 47μF, which is very important in many applications, especially in circuits that require large energy storage or filtering capabilities.

High voltage rating: Its 10V voltage rating enables the capacitor to operate stably in higher voltage environments and meet a variety of circuit design needs.

Wide temperature range: The operating temperature range is from -55℃ to +125℃, which enables the capacitor to operate under extreme temperature conditions and is suitable for various industrial and consumer electronic products.

Excellent electrical performance: X7R dielectric is used, which has a relatively stable capacitance value when temperature changes, ensuring the performance consistency of the capacitor at different temperatures.

Precision tolerance: ±10% tolerance ensures the accuracy of capacitor capacity and contributes to the stability and reliability of circuit design.

Miniaturized package: The 1210 (3225 metric) package is compact in size, easy to install in limited spaces, and meets the requirements of modern electronic equipment for miniaturization and lightweight.

Surface mount technology: Using SMT (surface mount technology) packaging, the capacitors can be automatically installed on the PCB board, improving production efficiency and reducing production costs.

Applications:

Power supply filtering in electronic equipment:

In various electronic devices, such as smartphones, tablets, laptops, etc., this capacitor is used for power supply filtering to help stabilize the power supply voltage, reduce power supply noise, and improve the power quality and stability of the device.

Signal filtering:

In communication equipment and signal processing circuits, GRM32ER71A476KE15L is used for signal filtering, filtering out unwanted frequency components, retaining or enhancing useful signals, and improving signal quality and clarity.

coupling:

In circuit design, the capacitor is often used as a coupling element to connect two or more circuit parts, while preventing DC signals from passing through and allowing AC signals to pass through to achieve signal transmission and conversion.

bypass:

Between the power line and the ground line, the GRM32ER71A476KE15L can be used as a bypass capacitor to provide a low-impedance path for high-frequency signals, reduce the impact of high-frequency noise on the circuit, and improve the overall performance of the circuit.

Oscillation circuit:

In some circuits that need to generate oscillation signals, such as clock circuits, radio frequency circuits, etc., the capacitor and other components (such as inductors, resistors, etc.) form an oscillation circuit to generate a stable oscillation signal.

industrial control:

In industrial automation and control systems, this capacitor is used for filtering, coupling and bypass in various circuits to ensure stable operation of the system and accurate signal transmission.
