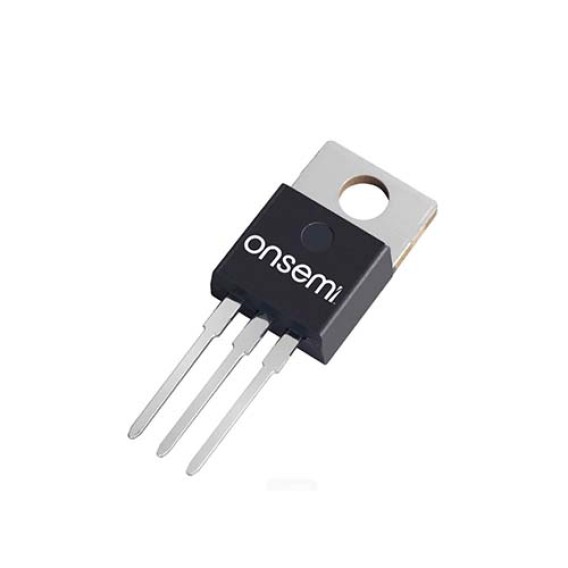

FDP18N50
  • FDP18N50
Free Sample More

FDP18N50

advertisement

Manufacturer No:

FDP18N50

Manufacturer:

ON Semiconductor

HK JDW NO:

598-FDP18N50

Package:

TO-220-3

Datasheet:

FDP18N50

Description:

FDP18N50 datasheet pdf and Transistors - FETs, MOSFETs - Single product details from ON Semiconductor stock available at HK JDW

Quantity:

Add to RFQ list

In Stock : 999

Share

Please send RFQ, we will respond immediately.

* Contact Name

* Business Email

* Company Name

* Country

* Quantity

Product Details

Purchasing and Inquiry

See Relate Datesheet
1. Purchase

You can send an inquiry by email, or add the item to the RFQ list and submit it to us.
Tell us the model and quantity you need, our sales staff will reply the price in time.
EmailEmail for receiving inquiries: jindawei@hkjdwchip.com

2. Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

3. RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

4. Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:
FedEx International, 5-7 business days.
The following are some common countries' logistic time.

Purchasing and Inquiry

Payment Method

 The fee is charged according to the rule of PayPal.
East West Bank charge US$30.00 banking fee.
The fee is charged according to the rule of PayPal.
Western Union charge US$0.00 banking fee.

Shipping

 DHL(www.dhl.com)
From $40.00 basic shipping fee depend on zone and country.
UPS(www.ups.com)
From $40.00 basic shipping fee depend on zone and country.
FedEx(www.fedex.com)
From $40.00 basic shipping fee depend on zone and country.
Registered Mail(www.singpost.com)
From $10.00 basic shipping fee depend on different zone and country.

Package

Product
Step1Product
Casing drivepipe
Step2Casing drivepipe
Anti-static bag
Step3Anti-static bag
Packaging boxes
Step4Packaging boxes
Bar-code shipping tag
Step5Bar-code shipping tag

FDP18N50

technical specifications, attributes, parameters and parts with similar specifications to FDP18N50.

  • Type
    Parameter
    Select All

  • FET Type

    N-Channel

  • Rds On (Max) @ Id, Vgs

    265m Ω @ 9A, 10V

  • Vgs(th) (Max) @ Id

    5V @ 250μA

  • Input Capacitance (Ciss) (Max) @ Vds

    2860pF @ 25V

  • Gate Charge (Qg) (Max) @ Vgs

    60nC @ 10V

  • Rise Time

    165ns

  • Fall Time (Typ)

    90 ns

  • Gate to Source Voltage (Vgs)

    30V

  • Drain to Source Breakdown Voltage

    500V

  • Current - Continuous Drain (Id) @ 25°C

    18A Tc

  • Avalanche Energy Rating (Eas)

    945 mJ

  • Drive Voltage (Max Rds On,Min Rds On)

    10V

  • Vgs (Max)

    ±30V

  • Factory Lead Time

    9 Weeks

  • Lifecycle Status

    ACTIVE (Last Updated: 2 days ago)

  • Mount

    Through Hole

  • Packaging

    Tube

  • Published

    2013

  • Series

    UniFET™

  • Pbfree Code

    yes

  • Part Status

    Active

  • Moisture Sensitivity Level (MSL)

    1 (Unlimited)

  • Number of Terminations

    3

  • ECCN Code

    EAR99

  • Length

    10.1mm

  • RoHS Status

    ROHS3 Compliant

  • Lead Free

    Lead Free

  • Contact Plating

    Tin

  • Current Rating

    18A

  • Radiation Hardening

    No

  • Number of Pins

    3

  • Additional Feature

    FAST SWITCHING

  • Package / Case

    TO-220-3

  • REACH SVHC

    No SVHC

  • Height

    9.4mm

  • Width

    4.7mm

  • Resistance

    265MOhm

  • Mounting Type

    Through Hole

  • Operating Temperature

    -55°C~150°C TJ

  • Voltage - Rated DC

    500V

  • Technology

    MOSFET (Metal Oxide)

  • Operating Mode

    ENHANCEMENT MODE

  • Current

    18A

  • JESD-609 Code

    e3

  • Subcategory

    FET General Purpose Power

  • Voltage

    500V

  • Number of Elements

    1

  • JEDEC-95 Code

    TO-220AB

  • Element Configuration

    Single

  • Power Dissipation

    235W

  • Turn On Delay Time

    55 ns

  • Threshold Voltage

    5V

  • Power Dissipation-Max

    235W Tc

  • Continuous Drain Current (ID)

    18A

  • Transistor Application

    SWITCHING

  • Turn-Off Delay Time

    95 ns

  • Transistor Element Material

    SILICON
