Home Home Discrete Semiconductors MOSFETs Transistors Arrays CSD87381P

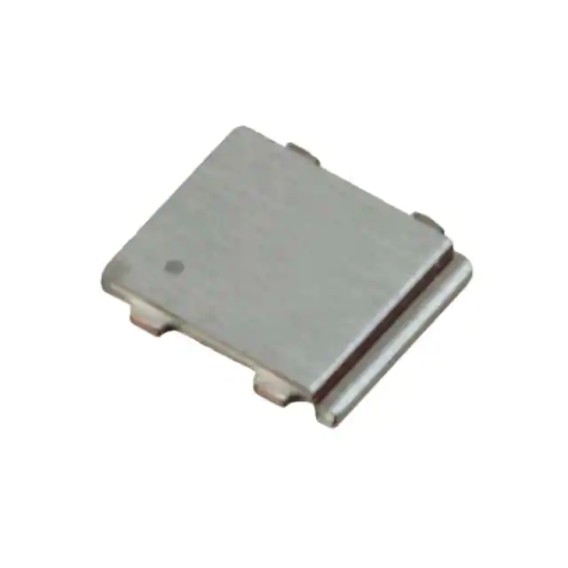

CSD87381P
  • CSD87381P
Free Sample More

CSD87381P

advertisement

Manufacturer No:

CSD87381P

Manufacturer:

Texas Instruments

HK JDW NO:

815-CSD87381P

Package:

5-LGA

Datasheet:

-

Description:

CSD87381P datasheet pdf and Transistors - FETs, MOSFETs - Arrays product details from Texas Instruments stock available at HK JDW

Quantity:

Add to RFQ list

In Stock : 999

Share

Please send RFQ, we will respond immediately.

* Contact Name

* Business Email

* Company Name

* Country

* Quantity

Product Details

Purchasing and Inquiry

CSD87381P    Description



  This CSD87381P NexFET floor power block is highly optimized for synchronous buck applications and provides high current and efficiency in 3mmx2.5mm 's small form factor package. Optimized for 5V pole drive applications, this product provides an efficient and flexible solution that provides a high-density power supply when used with any 5V gate driver of an external controller / driver.



CSD87381P      Features


Half-bridge power block

The efficiency of the system at 10A current is up to 90%. The working current is as high as 15A.

High density-3mmx25mm spliced grid array package (LGA size

Bilateral cooling capacity

Ultra-thin-maximum thickness 0.48mm optimized low switching loss and low inductance package for 5V gate drive

Meet RoHS environmental protection standard, halogen-free and lead-free



CSD87381P      Applications



Synchronous step-down converter

A multi-phase synchronous step-down converter with high current and low duty cycle

Point of load (POL) DC-DC converter







1. Purchase

You can send an inquiry by email, or add the item to the RFQ list and submit it to us.
Tell us the model and quantity you need, our sales staff will reply the price in time.
EmailEmail for receiving inquiries: jindawei@hkjdwchip.com

2. Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

3. RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

4. Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:
FedEx International, 5-7 business days.
The following are some common countries' logistic time.

Purchasing and Inquiry

Payment Method

 The fee is charged according to the rule of PayPal.
East West Bank charge US$30.00 banking fee.
The fee is charged according to the rule of PayPal.
Western Union charge US$0.00 banking fee.

Shipping

 DHL(www.dhl.com)
From $40.00 basic shipping fee depend on zone and country.
UPS(www.ups.com)
From $40.00 basic shipping fee depend on zone and country.
FedEx(www.fedex.com)
From $40.00 basic shipping fee depend on zone and country.
Registered Mail(www.singpost.com)
From $10.00 basic shipping fee depend on different zone and country.

Package

Product
Step1Product
Casing drivepipe
Step2Casing drivepipe
Anti-static bag
Step3Anti-static bag
Packaging boxes
Step4Packaging boxes
Bar-code shipping tag
Step5Bar-code shipping tag

CSD87381P

technical specifications, attributes, parameters and parts with similar specifications to CSD87381P.

  • Type
    Parameter
    Select All

  • Factory Lead Time

    6 Weeks

  • Lifecycle Status

    ACTIVE (Last Updated: 3 days ago)

  • Contact Plating

    Gold

  • Mount

    Surface Mount

  • Mounting Type

    Surface Mount

  • Package / Case

    5-LGA

  • Number of Pins

    5

  • Operating Temperature

    -55°C~150°C TJ

  • Packaging

    Tape & Reel (TR)

  • Series

    NexFET™

  • JESD-609 Code

    e4

  • Pbfree Code

    yes

  • Part Status

    Active

  • Moisture Sensitivity Level (MSL)

    1 (Unlimited)

  • Number of Terminations

    5

  • ECCN Code

    EAR99

  • Max Power Dissipation

    4W

  • Terminal Position

    UNSPECIFIED

  • Terminal Form

    UNSPECIFIED

  • Peak Reflow Temperature (Cel)

    260

  • Number of Functions

    1

  • Time@Peak Reflow Temperature-Max (s)

    NOT SPECIFIED

  • Base Part Number

    CSD87381

  • Number of Outputs

    1

  • Max Output Current

    40A

  • Input Voltage-Nom

    12V

  • Analog IC - Other Type

    SWITCHING REGULATOR

  • Element Configuration

    Single

  • Power Dissipation

    4W

  • FET Type

    2 N-Channel (Half Bridge)

  • Input Voltage (Max)

    24V

  • Rds On (Max) @ Id, Vgs

    16.3m Ω @ 8A, 8V

  • Vgs(th) (Max) @ Id

    1.9V @ 250μA

  • Output Current per Channel

    15A

  • Control Technique

    PULSE WIDTH MODULATION

  • Input Capacitance (Ciss) (Max) @ Vds

    564pF @ 15V

  • Gate Charge (Qg) (Max) @ Vgs

    5nC @ 4.5V

  • Rise Time

    16.3ns

  • Drain to Source Voltage (Vdss)

    30V

  • Fall Time (Typ)

    2.9 ns

  • Turn-Off Delay Time

    16.8 ns

  • Switcher Configuration

    BUCK

  • Continuous Drain Current (ID)

    15A

  • Gate to Source Voltage (Vgs)

    8V

  • Drain to Source Breakdown Voltage

    30V

  • FET Feature

    Logic Level Gate

  • Height

    480μm

  • Length

    3mm

  • Width

    2.5mm

  • Thickness

    400μm

  • RoHS Status

    ROHS3 Compliant

  • Lead Free

    Lead Free
