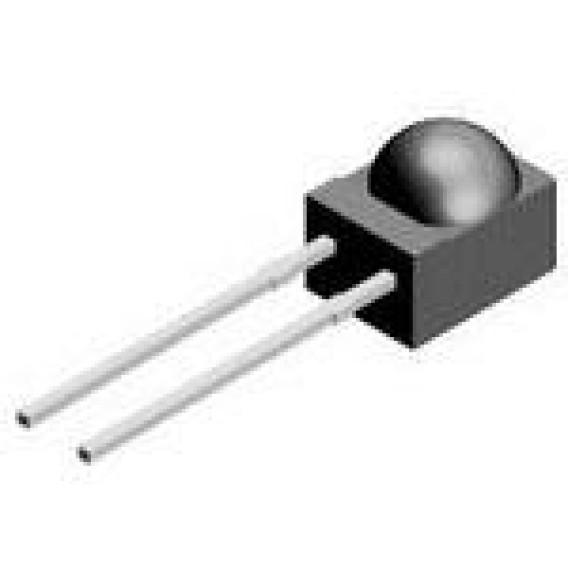

BPV22NFL
BPV22NFL
879-BPV22NFL
2-SIP
BPV22NFL datasheet pdf and Optical Sensors - Photodiodes product details from Vishay Semiconductor Opto Division stock available at HK JDW
In Stock : 999
Share
Please send RFQ, we will respond immediately.
Product Details
Purchasing and Inquiry
BPV22NFL Overview
The photodiodes are packaged in the Bulk for protection. It is necessary to place the photodiodes into 2-SIP packages in order to protect them from damage. As long as the photodiodes are operated continuously in reverse-bias mode, the maximum voltage they can tolerate is 60V. Under reverse-bias mode, the voltage of the photodiodes should not exceed 60V. It has 2 pins for the photodiodes. During the operation of a circuit, photodiodes can release 215mW heat. During the operation of photodiodes, the temperature should not exceed 100°C. In spite of this, the photodiodes should be operated at a minimum operating temperature of -40°C. In the case of photodiodes, the reverse anode voltage should be 60V. Generally, the maximum amount of heat released by photodiodes is 215mW. A reverse voltage 60V does not affect the photodiodes in the DC circuit. Current must flow across a photodiode at 1.3V voltage. When no light is input, a photodiode will conduct at 2nA current.
BPV22NFL Features
Moisture Sensitivity Level (MSL): 1 (Unlimited)
Operating Temperature: -40°C~100°C
Packaging: Bulk
Diode Type: PIN
Mount: Through Hole
Spectral Range: 790nm ~ 1050nm
Response Time: 100ns
Viewing Angle: 120°
BPV22NFL Applications
There are a lot of Vishay Semiconductor Opto Division BPV22NFL Photodiodes applications.
- Machine Controls
- Optical Analytics
- Heart Rate Monitoring
- Light Barriers
- Infrared remote control
- Infrared data transmission
- Light Bariers
- Shaft encoders
- Pulse Oximetry
- Diode Laser Monitoring
