B2P-VH(LF)(SN)
B2P-VH(LF)(SN)
FEILIDI-B2P-VH(LF)(SN)
B2P-VH(LF)(SN)

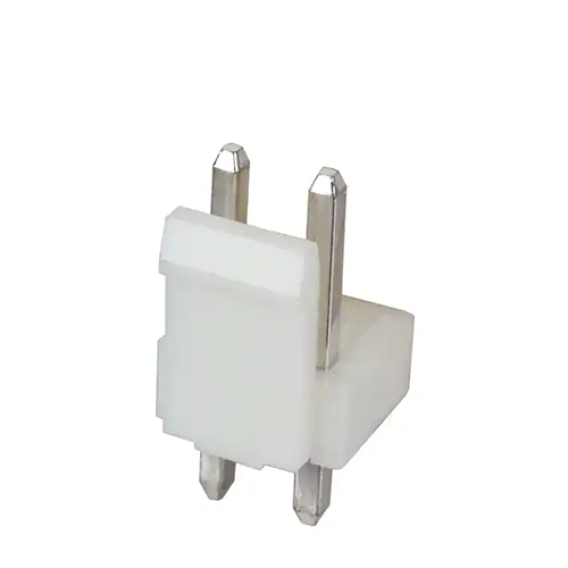

Connector Header Through Hole 2 position 0.156" (3.96mm)
In Stock : 1000
Share
Please send RFQ, we will respond immediately.
Product Details
Purchasing and Inquiry
Specifications
• Current rating: 10 A AC/DC (AWG #16)
• Voltage rating: 250 V AC/DC
• Temperature range: -25℃ to +85℃
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/ 10 mΩ max.
After environmental tests/ 20 mΩ max.
• Insulation resistance: 1,000 MΩ min.
• Withstanding voltage: 1,500 VAC/minute
• Applicable wire: AWG #22 to #16
• Applicable PC board thickness: 1.6 mm
Note:
Do not branch in parallel current which exceeds the rated current. If branched
in parallel, current imbalance or other problems may develop. If it is
absolutely necessary to branch such a large current in parallel, be sure to use
contacts made of phosphor bronze. Design the circuits without causing
imbalance and provide an extra margin for each circuit.
* In using the products, refer to "Handling Precautions for Terminals
and Connectors" described on our website (Technical documents
of Product information page).
* RoHS2 compliance
* Dimensional unit: mm
* Contact JST for details.
Standards
Recognized E60389
Certified LR20812
R75122
