AT89C51RC-24AU

AT89C51RC-24AU Overview

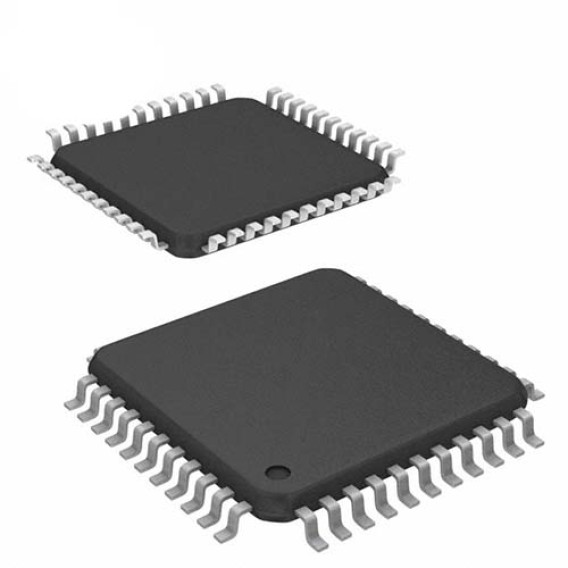

Packaged in a 44-TQFP format. 32 I/Os are available. The Microcontroller's mounting type is Surface Mount and this IC chip has the following features. This Microcontroller is based on a core called 8-Bit. The type of program memory it uses is FLASH. The temperature range that this Microcontroller operates at is -40°C~85°C TA. 89C-series components are electrical components. 32KB 32K x 8 is the size of its program memory. MCU is powered by 8051 Core Processor. This device belongs to the MICROCONTROLLER uPs/uCs/Peripheral ICs category. There are 44 terminations on the IC chip, which means there are 44 terminations on the integrated circuit chip. 8-bits are used for its size. An output voltage of 5V volts is available for this Microcontroller chip. With NO DMA channels, Microcontroller chip can handle large data transfers. The part owns 32kB memory size. You can find alternatives through the base part number AT89C51RC. A good performance can be achieved at a frequency of 24MHz, as long as it is operated at a low power consumption. Using the PWM channel NO, the device works with the motor. On the chip, 44 pins are accessible. The clock has 3 timers/counters to keep track of the time.

The AT89C51RC is a low-power, high-performance CMOS 8-bit microcontroller with 32K bytes of Flash programmable read-only memory and 512 bytes of RAM. The device is manufactured using Atmel’s high-density nonvolatile memory technology and is compatible with the industry-standard 80C51 and 80C52 instruction set and pinout. The on-chip Flash allows the program memory to be user programmed by a conventional nonvolatile memory programmer. A total of 512 bytes of internal RAM are available in the AT89C51RC. The 256-byte expanded internal RAM is accessed via MOVX instructions after clearing bit 1 in the SFR located at address 8EH. The other 256-byte RAM segment is accessed the same way as the Atmel AT89-series and other 8052-compatible products. By combining a versatile 8-bit CPU with Flash on a monolithic chip, the Atmel AT89C51RC is a powerful microcomputer which provides a highly-flexible and cost-effective solution to many embedded control applications.

AT89C51RC-24AU Features

44-TQFP package
Mounting type of Surface Mount
Microcontrollers subcategory

AT89C51RC-24AU Applications

There are a lot of Microchip Technology AT89C51RC-24AU Microcontroller applications.

• Air fryers
• PDAs, game consoles
• Refrigerators
• Pacemakers
• Ipod
• Telephone sets
• Security systems
• Digital set-top boxes
• Dialysis machines
• Nintendo
