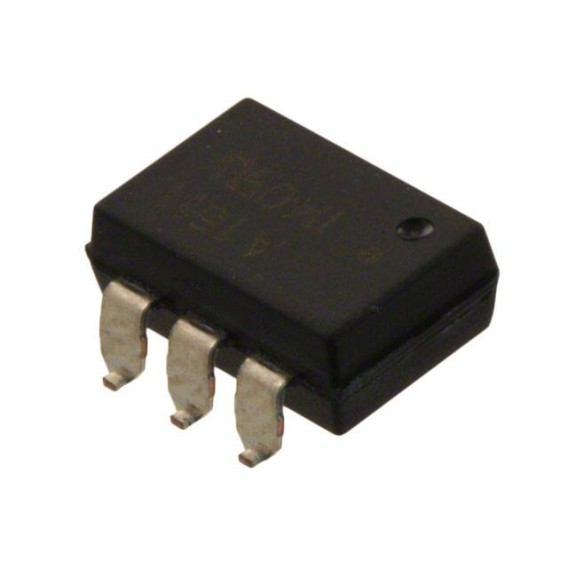

AVAGO TECHNOLOGIES ASSR-1611-301E MOSFET Relay, 60 V, 2.5 A, 0.1 ohm, SPST-NO
In Stock : 999
Share
Please send RFQ, we will respond immediately.
Product Details
Purchasing and Inquiry
Description
The ASSR-1611 is designed for high current applications commonly found in industrial equipment. The relay is a solid-state replacement for single-pole normally open (1 Form A) electromechanical relays.
The ASSR-1611 consists of an AlGaAs infrared light emitting diode (LED) input stage optically coupled to a high voltage output detector circuit.
The detector consists of a high speed photovoltaic diode array and driver circuitry to switch two discrete high voltage MOSFETs on/off.
The relay opens (contacts closed) at a minimum input current of 5mA through the input LED. The relay closes (contacts open) at an input voltage of 0.8V or less.
The ASSR-1611 connection A (shown in the schematic) allows the relay to switch either AC or DC loads. Connection B has the advantage of reduced on-resistance and higher output current, allowing the relay to switch DC loads only.
The electrical and switching characteristics are specified over the -40°C to +85°C temperature range.
Features
Compact Solid-State Bi-directional Signal Switch
Single Channel Normally-off Single-Pole-Single-Throw
(SPST) Relay
60V Output Withstand Voltage
2.5A or 5A Current Rating
Low Input Current: CMOS Compatibility
Low On-Resistance: 20mΩ Typical for DC-only, 65mΩ
Typical for AC/DC
High Speed Switching: 3.2ms (Ton), 0.1ms (Toff) Typical
High Transient Immunity: >1kV/μs
High Input-to-Output Insulation Voltage
- (Safety and Regulatory Approvals)
UL recognized - 3750 VRMS and 5000 VRMS* for 1 min
per UL1577
- CSA Component Acceptance
Applications
Industrial Controls
Factory Automation
Data Acquisition
Measuring Instrument
Medical System
Security System
EMR / Reed Relay Replacement
