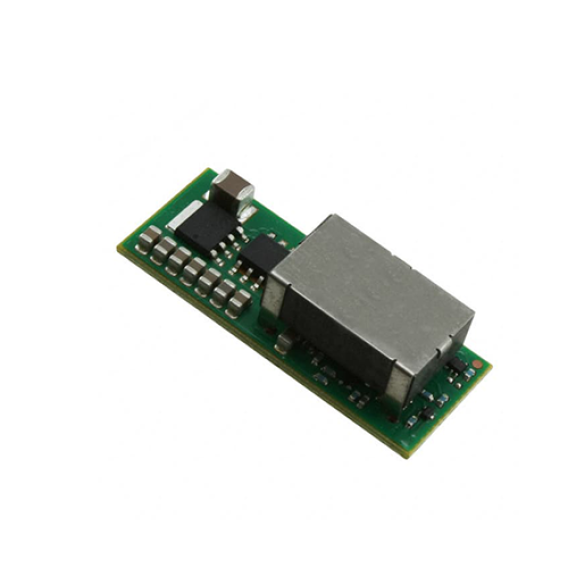

APTS020A0X43-SRZ
APTS020A0X43-SRZ
FEILIDI-APTS020A0X43-SRZ
10-SMD Module
Non-Isolated PoL Module DC DC Converter 1 Output 0.7 ~ 5.5V 20A 4.5V - 14V Input
In Stock : 1999
Share
Please send RFQ, we will respond immediately.








Product Details
Purchasing and Inquiry
Features
▪ Compliant to RoHS Directive 2011/65/EU and amended
Directive (EU) 2015/863 (Z versions)
▪ Compatible in a Pb-free or SnPb reflow environment (Z
versions)
▪ Compliant to REACH Directive (EC) No 1907/2006
▪ Wide Input voltage range (4.5Vdc-14Vdc)
▪ Output voltage programmable from 0.69Vdc to 5.5 Vdc
via external resistor
▪ Tunable LoopTM to optimize dynamic output voltage
response
▪ Flexible output voltage sequencing EZ-SEQUENCE (APTS
versions)
▪ Fixed switching freqeuency and ability to synchronize
with external clock
▪ Output overcurrent protection (non-latching)
▪ Overtemperature protection
▪ Remote On/Off
▪ Remote Sense
▪ Power Good signal
▪ Ability to sink and source current
▪ Small size:
33 mm x 13.46 mm x 8.5 mm
(1.3 in x 0.53 in x 0.334 in)
▪ Wide operating temperature range [-40°C to 85°C]
▪ ANSI/UL* 62368-1 and CAN/ CSA† C22.2 No. 62368-1
Recognized, DIN VDE‡ 0868-1/A11:2017 (EN62368-
1:2014/A11:2017)
▪ ISO** 9001 and ISO 14001 certified manufacturing
facilities
Description
The 12V TLynxTM series of power modules are non-isolated dc-dc converters that can deliver up to 20A of output current.
These modules operate over a wide range of input voltage (VIN = 4.5Vdc-14Vdc) and provide a precisely regulated output
voltage from 0.69Vdc to 5.5Vdc, programmable via an external resistor. Features include frequency synchronization, remote
On/Off, adjustable output voltage, over current and temperature protection, power good and output voltage sequencing. The
Ruggedized version (-D) is capable of operation up to 105°C and withstand high levels of shock and vibration. The Tunable
LoopTM, allows the user to optimize the dynamic response of the converter to match the load with reduced amount of output
capacitance leading to savings on cost and PWB area.
* UL is a registered trademark of Underwriters Laboratories, Inc.
† CSA is a registered trademark of Canadian Standards Association.
‡ VDE is a trademark of Verband Deutscher Elektrotechniker e.V.
** ISO is a registered trademark of the International Organization of Standards
Applications
▪ Distributed power architectures
▪ Intermediate bus voltage applications
▪ Telecommunications equipment
▪ Servers and storage applications
▪ Networking equipment
▪ Industrial equipment
