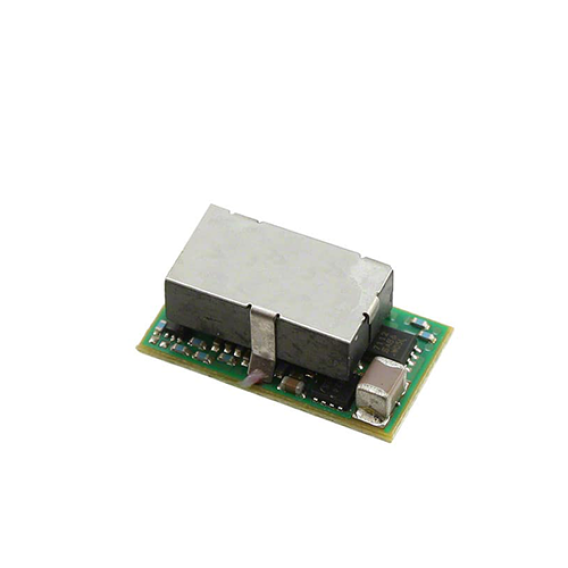

APTS012A0X3-SRZ
APTS012A0X3-SRZ
feilidi-APTS012A0X3-SRZ
10-SMD Module
Non-Isolated PoL Module DC DC Converter 1 Output 0.7 ~ 5.5V 12A 4.5V - 14V Input
In Stock : 1999
Share
Please send RFQ, we will respond immediately.








Product Details
Purchasing and Inquiry
▪ Distributed power architectures
▪ Intermediate bus voltage applications
▪ Telecommunications equipment
▪ Servers and storage applications
▪ Networking equipment
▪ Industrial equipment
Features
▪ Compliant to RoHS Directive 2011/65/EU and
amended Directive (EU) 2015/863
▪ Compliant to REACH Directive (EC) No 1907/2006
▪ Compatible in a Pb-free or SnPb reflow environment (Z
versions)
▪ DOSA Based
▪ Wide Input voltage range (4.5Vdc-14Vdc)
▪ Output voltage programmable from 0.69Vdc to 5.5
Vdc via external resistor
▪ Tunable LoopTM to optimize dynamic output voltage
response
▪ Flexible output voltage sequencing EZ-SEQUENCE
(APTS versions)
▪ Fixed switching frequency and ability to synchronize
with external clock
▪ Output overcurrent protection (non-latching)
▪ Overtemperature protection
▪ Remote On/Off
▪ Remote Sense
▪ Power Good signal
▪ Fixed switching frequency
▪ Ability to sink and source current
▪ Small size: 20.3 mm x 11.4 mm x 8.5 mm (0.8 in x 0.45
in x 0.334 in)
▪ Wide operating temperature range [-40°C to
105°C(Ruggedized: -D), 85°C(Regular)]
▪ Ruggedized (-D) version able to withstand high levels of
shock and vibration
▪ ANSI/UL* 62368-1 and CAN/CSA† C22.2 No. 62368-1
Recognized, DIN VDE‡ 0868-1/A11:2017 (EN62368-
1:2014/A11:2017
▪ ISO** 9001 and ISO 14001 certified manufacturing
facilities
Description
The 12V Micro TLynxTM series of power modules are non-isolated dc-dc converters that can deliver up to 12A of output current. These
modules operate over a wide range of input voltage (VIN = 4.5Vdc-14Vdc) and provide a precisely regulated output voltage from
0.69Vdc to 5.5Vdc, programmable via an external resistor. The new Ruggedized version (-D) is capable of operation up to 105°C and
can withstand high levels of shock and vibration. Features include frequency synchronization, remote On/Off, adjustable output
voltage, over current and overtemperature protection, power good and output voltage sequencing. A new feature, the Tunable
LoopTM, allows the user to optimize the dynamic response of the converter to match the load with reduced amount of output
capacitance leading to savings on cost and PWB area.
