ADS1247IPWR
ADS1247IPWR
815-ADS1247IPWR

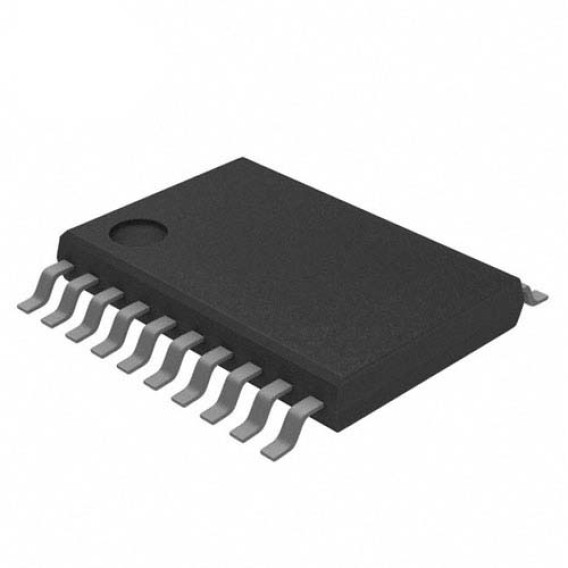

20-TSSOP (0.173, 4.40mm Width)
24 Bit 0.65mm Gold ADC ADS1247 5V 20-TSSOP (0.173, 4.40mm Width)
In Stock : 4112
Share
Please send RFQ, we will respond immediately.
Product Details
Purchasing and Inquiry
Product Description:
The ADS1247IPWR is a precision analog-to-digital converter (ADC) designed to provide high-resolution, accurate, and reliable data conversion for a wide range of applications. This device offers exceptional performance and features, making it suitable for demanding measurement and control systems.
Features:
High Resolution: The ADS1247IPWR offers high-resolution data conversion, allowing it to accurately capture small changes in analog input signals.
Low Noise and Drift: This ADC is engineered with low noise and low drift characteristics, ensuring that the converted data is stable and reliable over time and varying environmental conditions.
Programmable Gain: The device features programmable gain settings, allowing users to adjust the amplification of the input signal to accommodate a wide range of signal amplitudes.
Multiple Input Channels: The ADS1247IPWR supports multiple input channels, enabling the simultaneous conversion of different analog signals.
SPI Interface: It features a serial peripheral interface (SPI) for communication, making it easy to interface with microcontrollers and other digital devices.
Integrated Temperature Sensor: The ADC includes an integrated temperature sensor, which can be used for temperature compensation or monitoring in applications requiring accurate temperature measurements.
Low Power Consumption: The low power consumption of the device makes it suitable for battery-operated and energy-efficient systems.
Internal Voltage Reference: The built-in voltage reference ensures accurate and stable conversions without the need for external references.
Applications:
Industrial Automation: The ADS1247IPWR is ideal for various industrial automation applications, such as process control, data acquisition, and instrumentation, where precise analog signal measurements are crucial.
Medical Devices: In medical devices like patient monitoring systems and diagnostic equipment, the ADC can provide accurate data conversion for vital signs and patient measurements.
Weighing Scales: The high-resolution ADC is well-suited for applications like weighing scales, ensuring precise measurement of weights and loads.
Sensor Signal Conditioning: It can be used to condition and digitize signals from various sensors, such as temperature sensors, pressure sensors, and strain gauges.
Energy Management: In energy management systems, the ADC can be employed to monitor and control power consumption, energy harvesting, and renewable energy sources.
Automotive Electronics: The device's accuracy and stability make it suitable for automotive applications like fuel efficiency monitoring, battery management, and sensor data conversion.
Test and Measurement Equipment: The ADC is commonly used in laboratory and test equipment, providing accurate data conversion for experimental setups and measurements.
Communication Systems: It can be integrated into communication systems to digitize analog signals for transmission and processing.
In summary, the ADS1247IPWR is a high-performance analog-to-digital converter designed for precise data conversion in a variety of applications. With its high resolution, low noise, programmable gain, and versatile input channels, this device is a valuable component for systems requiring accurate and reliable analog-to-digital conversion. Its suitability for industrial, medical, automotive, and communication applications makes it a versatile choice for engineers and designers seeking precise data acquisition solutions.
